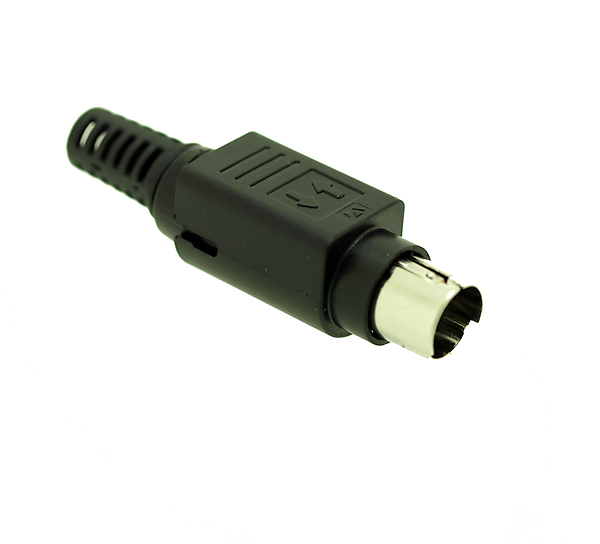

KMDLAX - Kycon Mini Din Snap & Lock Plug (KMDLA)

From: £1.99

UL E140125 & CSA certified LR78160
Supplied unassembled
6 pin also available in PC99 Colours (Green & Purple)
MOQ may apply to non stock items
1500 cycle durability (Min. in test plug)

Part No.	Stock Qty	1+	100+	500+	1000+	Qty
KMDLAX-3P 3 Contacts	289 in stock	£2.61	£2.44	£2.29	£1.99	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KMDLAX-4P 4 Contacts	790 in stock	£2.70	£2.56	£2.40	£2.05	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KMDLAX-5P 5 Contacts	64 in stock	£2.84	£2.62	£2.45	£2.08	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KMDLAX-6P 6 Contacts	190 in stock	£3.03	£2.83	£2.66	£2.42	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KMDLAX-8P 8 Contacts	947 in stock	£3.28	£3.05	£2.85	£2.60	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Insert: Nylon 101, Black Color, UL94V-2 Rated

Plastic Shell: PVC, UL94V-2 Rated

Contact: Brass, Silver Plated

Metal Shield: Nickel Plated Steel

Suggested Wire Gauge: 26 - 30 Awg.

Insertion Force: 0.5kg Max.

Extraction Force: 1.0kg - 5.0kg

Contact Current Rating: 12V DC 2 Amp Max.

Insulation Resistance: 50 Megohms Min. at 250V DC

Dielectric Withstanding Voltage: 500V AC for 1 Minute

Operating Temperature: -25°C to +85°C

This Kycon Mini Din Snap & Lock Plug assembly is UL E140125 & CSA certified LR78160. Supplied unassembled, 6 pin version available in PC99 Colours (Green & Purple)
