KV - Lumberg Circular Connector Cable Sockets (KV)

From: £3.60
Copied to clipboard
  • Lumberg IEC 60130-9 standard
  • Circular connectors with threaded joint M16
  • IP40/IP68. Socket acc. to IEC 61076-2-106
  • IP40 straight version, with threaded joint, solder terminals and long bend protection
Part No. Stock Qty 100+ 1000+ 5000+ 10000+ Qty
KV-30
50pcs Pack
Standard delivery
10 - 12 working days *
£4.23£4.11£3.89£3.60
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KV-40
50pcs Pack
Standard delivery
10 - 12 working days *
£4.25£3.99£3.88£3.72
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KV-50
50pcs Pack
Standard delivery
15 - 17 working days *
£4.70£4.55£4.25£3.99
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KV-50-6
50pcs Pack
Standard delivery
10 - 12 working days *
£4.49£4.18£4.06£3.91
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KV-60
50pcs Pack
Standard delivery
10 - 12 working days *
£4.79£4.49£4.29£4.18
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KV-70
50pcs Pack
30 in stock £5.05£4.69£4.52£4.37
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KV-80
50pcs Pack
Standard delivery
10 - 12 working days *
£5.29£5.09£4.90£4.57
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KV-81
50pcs Pack
Standard delivery
10 - 12 working days *
£5.29£5.12£4.79£4.49
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

RoHS Compliant

Temperature range: -40 °C/+85 °C

Insulating body: PA GF, V-0 according to UL94

Contact bush: CuZn, silver-plated and flash gold-plated (3-8 poles) CuZn, pre-nickel and gold-plated (12 poles)

Sleeve: PC, HB according to UL94

Strain relief: steel, nickel-plated

Housing: CuZn, nickel-plated

Bend protection sleeve: TPE

Screw: steel, nickel-plated



Insertion force/contact: ≤ 5.0 N  *1

Withdrawal force/contact: ≥ 1.2 N (3-8 poles) ≥ 0.9 N (12 poles)  *2

Protection class: IP40  *3

1) measured with a polished steel pin, nominal thickness 1.5 mm (1.0 mm with 12 poles)

2) measured with a polished steel pin, nominal thickness 1.5 mm (1.0 mm with 12 poles)

3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart



Connectable conductors for solder area

Section: ≤ 0.75 mm² (AWG 20) (3-8 poles) / ≤ 0.25 mm² (AWG 24) (12 poles)

Cable diameter: 4–6 mm

Electrical data (at Tamb 20 °C)

Contact resistance: ≤ 5 mΩ

Rated current: 5 A (Tamb 40 °C, 3-8 poles) / 3 A (Tamb 40 °C, 12 poles)

Rated voltage: with pollution degree 1:
300 V (versions 30, 40, 50/6, 60, 70)
100 V (versions 50, 71, 80, 81)
160 V (Polbild 120)
with pollution degree 2:
250 V (versions 30, 40)
32 V (versions 50, 71, 80, 81)
160 V (versions 50/6, 60, 70, 120)

Rated impulse voltage: 1500 V (versions 30, 40, 50/6, 60, 70, 120) 500 V (versions 50, 71, 80, 81)

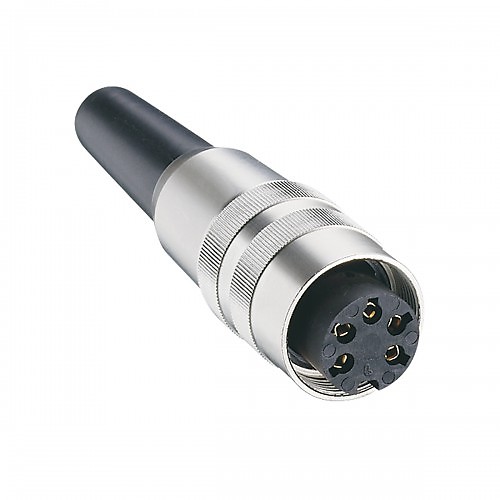

Lumberg circular connectors with threaded joint M16 acc. to IEC 61076-2-106, IP40/IP68. Socket acc. to IEC 61076-2-106, IP40, straight version, with threaded joint, solder terminals and long bend protection.
