| Part No. | Stock Qty | 100+ | 500+ | Qty |
|---|---|---|---|---|
|
KGR 120
50pcs Pack |
Standard delivery 10 - 12 working days * |
£10.90 | £10.22 | |
|
KGR 40
50pcs Pack |
Standard delivery 10 - 12 working days * |
£2.77 | £2.69 | |
|
KGR 50/6
50pcs Pack |
Standard delivery 10 - 12 working days * |
£3.08 | £2.89 | |
|
KGR 60
50pcs Pack |
Standard delivery 10 - 12 working days * |
£3.39 | £3.19 | |
|
KGR 71
50pcs Pack |
Standard delivery 10 - 12 working days * |
£3.66 | £3.25 | |
|
KGR 80
50pcs Pack |
Standard delivery 10 - 12 working days * |
£3.98 | £3.35 | |
|
KGR 81
50pcs Pack |
Standard delivery 10 - 12 working days * |
£3.98 | £3.75 | |
|
KGV 120
50pcs Pack |
200 in stock | £9.90 | £9.35 | |
|
KGV 30
50pcs Pack |
Standard delivery 10 - 12 working days * |
£2.32 | £2.22 | |
|
KGV 40
50pcs Pack |
Standard delivery 10 - 12 working days * |
£2.60 | £2.49 | |
|
KGV 50/6
50pcs Pack |
Standard delivery 10 - 12 working days * |
£2.89 | £2.69 | |
|
KGV 60
50pcs Pack |
Standard delivery 10 - 12 working days * |
£3.15 | £2.95 | |
|
KGV 81
50pcs Pack |
Standard delivery 10 - 12 working days * |
£3.69 | £3.45 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Temperature range -40 °C/+85 °C
Insulating body PA GF, V-0 according to UL94
Contact bush CuZn, silver-plated and flash gold-plated, tin-plated in solder area (3-8 poles)
CuZn, pre-nickel and gold-plated, tin-plated in solder area (12 poles)
Housing Zn diecast, pre-copper and nickel-plated
Ring screw CuZn, nickel-plated
Insertion force/contact ≤ 5.0 N 1
Withdrawal force/contact ≥ 1.2 N (3-8 poles) ≥ 0.9 N (12 poles) 1
Tightening torque connector 1-3 Nm
Tightening torque nut 1-3 Nm
Protection class IP40 2
1 measured with a polished steel pin, nominal thickness 1.5 mm (1.0 mm with 12 poles)
2 according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart
Electrical data (at Tamb 20 °C)
Contact resistance ≤ 5 mΩ
Rated current 5 A (Tamb 40 °C, 3-8 poles)
3 A (Tamb 40 °C, 12 poles)
Rated voltage with pollution degree 1:
300 V (versions 30, 40, 50/6, 60, 70)
100 V (versions 50, 71, 80, 81)
160 V (Polbild 120)
with pollution degree 2:
250 V (versions 30, 40)
32 V (versions 50, 71, 80, 81)
160 V (versions 50/6, 60, 70, 120)
Rated impulse voltage 1500 V (versions 30, 40, 50/6, 60,
70, 120)
500 V (versions 50, 71, 80, 81)
Material group II (IEC)/1 (UL) (400 ≤ CTI < 600)
Overvoltage category I
Insulation resistance > 100 MΩ

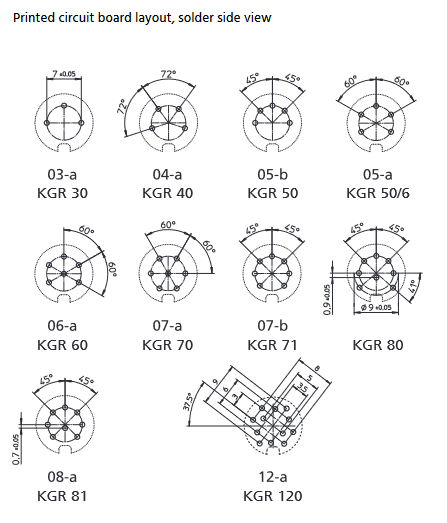

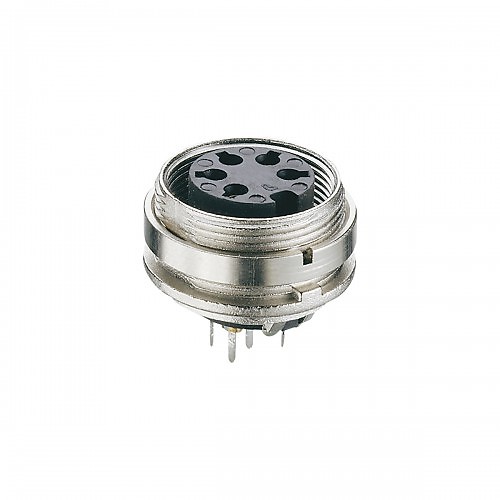

Circular connectors with threaded joint M16 acc. to IEC 61076-2-106, IP40/IP68. Chassis socket acc. to IEC 61076-2-106, IP40, with threaded joint, for printed circuit boards, for back side mounting
