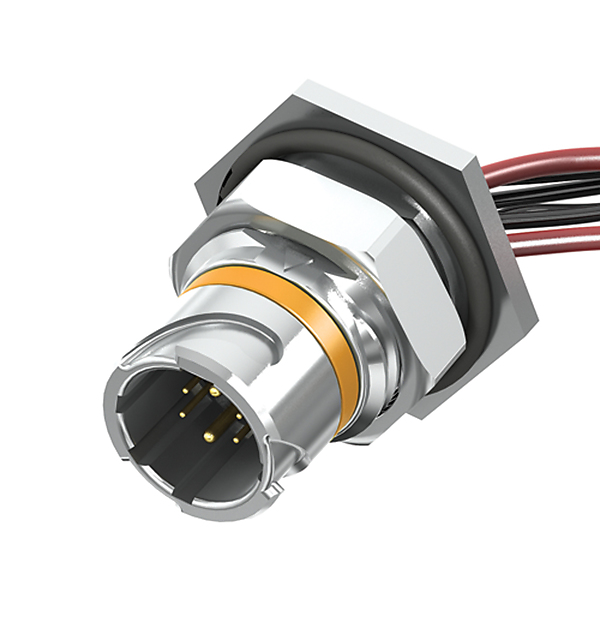

ACR-12 Samtec AccliMate™ IP68 Sealed Circular Panel Assembly, Receptacle (ACR12)

From: £4.85
Copied to clipboard
  • Metal or plastic shell
  • Standard 24 or 28 AWG wires
  • Four keying options
  • Field application kits available
  • Dust caps DCA-ACR-12-X-X
  • Up to 5.0A
  • 0.50 mm or 1.00 mm diameter pins available
Part No. Stock Qty 1+ 100+ 250+ 500+ 1000+ Qty
ACR-12-01-G-02.00-S-S1-P-1   3D CAD
Standard delivery
11 - 13 working days *
£6.46£6.18£6.09£5.62£5.15
Standard delivery 11 - 13 working days
ACR-12-05-G-00.40-T-S1-P-1   3D CAD
Standard delivery
11 - 13 working days *
£6.68£6.38£6.29£5.80£5.32
Standard delivery 11 - 13 working days
ACR-12-05-G-00.50-S-BC-P-1   3D CAD
Standard delivery
11 - 13 working days *
£6.08£5.82£5.73£5.28£4.85
Standard delivery 11 - 13 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator: Thermoplastic Terminal

Contact: Brass

Material: Brass/BeCu

Plating: Au over 50µ" (1.27µm) Ni

Operating Temp Range: -40 °C to +80 °C

Housing: option "–P" = Black Nylon, option "–M" = Zinc Alloy

RoHS Compliant

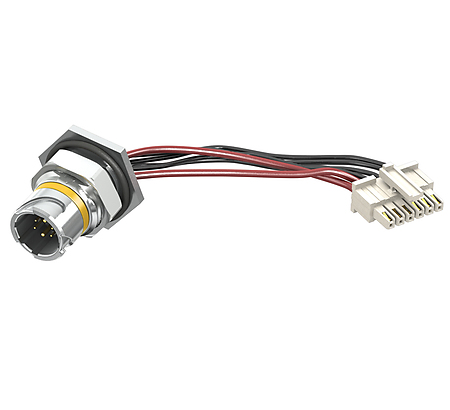

Samtec IP68 Sealed 12mm panel assembly in a variety of end 2 options and a choice of terminal or sockets. Mates with ACP-12, ACPK-12 metal and plastic dust caps available.
