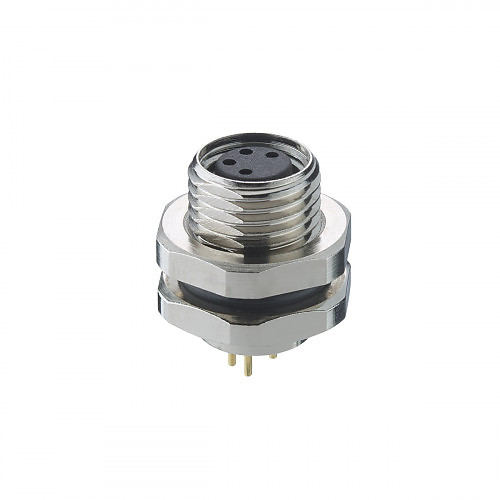

0821 Lutronic M8 Rear Mount Female Panel Connector (0821)

From: £3.99
  • M8 panel mount connector
  • 3pin or 4pin
  • A Coded, IP67 rated
  • For rear side mounting M10 thread
  • RoHS compliant, cULus approval pending
Part No. Stock Qty 5+ 10+ 50+ 100+ Qty
0821-03-T10CP
3pin A Code M8 PnlMnt-M10 Thrd
10 in stock £6.99£4.67£4.30£3.99
0821-04-T10CP
4pin A Code M8 PnlMnt-M10 Thrd
10 in stock £7.47£4.98£4.60£4.27

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Temperature range: -25 °C/+80 °C

Insulating body: PA

Contact bush: CuZn, pre-nickel and gold-plated

Mating cycles: ≥ 100

Insertion force: ≤ 23 N  *1

Withdrawal force: ≤ 23 N  *2

Protection class: IP67  *3

1) measured with a proper counterpart

2) measured with a proper counterpart

3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart



Electrical data (at Tamb 20 °C)

Contact resistance: ≤ 10 mΩ

Rated current: 4 A (Tamb 40 °C)

Rated voltage: 50 V AC/60 V DC (with pollution degree 3)

Rated impulse voltage: 1,5 kV

M8 panel mount connector, female, A-coded, IP67, for rear side mounting, thread M10, for printed circuit boards
