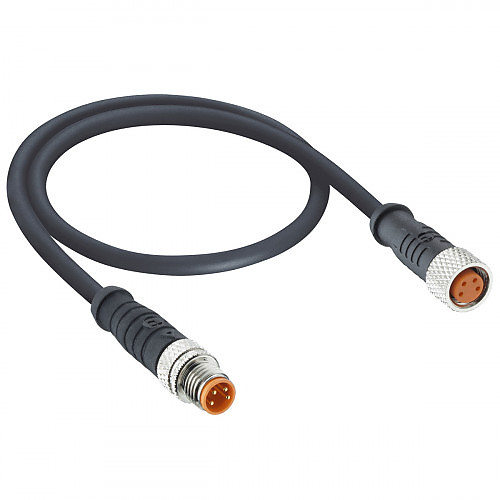

0810-08 Lutronic 4Pin M8 Male to Female Cordset (08800)

From: £9.98
Copied to clipboard
  • Actuator/sensor cordset with overmolded connectors
  • Cable end 1: M8 male, straight, A-coded, IP67
  • Cable end 2: M8 female, straight, A-coded, IP67
  • Cable: PUR, black
  • cULus approved
Part No. Stock Qty 5+ Qty
0810-0800-04-301-2M
10 in stock £9.98
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Temperature range: -25 °C/+80 °C

Insulating body: TPU GF, HB according to UL94

Contact bush: CuZn, pre-nickel and gold-plated

Contact pin: CuZn, pre-nickel and gold-plated

Overmolding/handle: TPU  *1

1) material halogen-free



Mating cycles: ≥ 100

Insertion force: ≤ 23 N

Withdrawal force: ≤ 23 N

Protection class: IP67  *1

1) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart



Electrical data (at Tamb 20 °C)

Contact resistance: ≤ 10 mΩ

Rated current: 4 A (Tamb 40 °C)

Rated voltage: 50 V AC/60 V DC (at pollution degree 3)

Rated impulse voltage: 1,5 kV

RoHS compliant

Lutronic Series M8 Actuator/Sensor Cordsets M8 Cordsets with overmolded connectors, single or double-ended, with threaded joint M8 according to IEC 61076-2-104, IP67, or with snap joint, IP65
