Lutronic

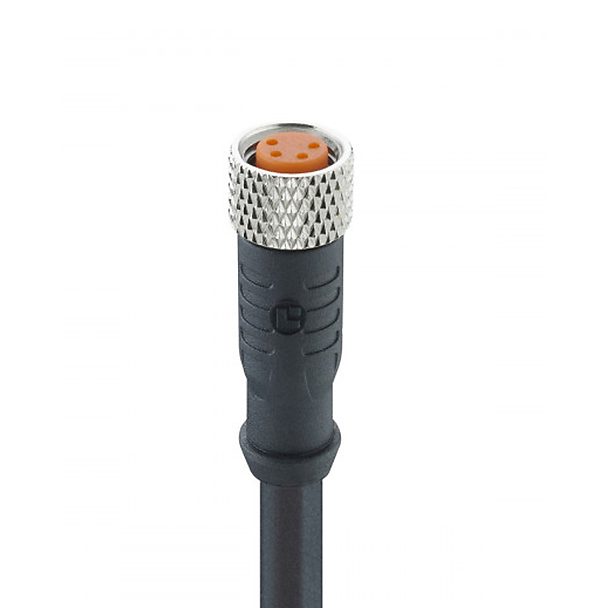

0800 - Lutronic M8 Single End Female Cordset (08003)

From: £3.84
Copied to clipboard
  • Actuator/sensor cordset with overmolded connector
  • Cable end 1:M8 3pin or 4pin female, straight, A-coded, IP67
  • Cable end 2:blunt cut
  • Cable; PUR, black
  • RoHS Compliant and cULs approved
  • MOQ & multiples may apply
Part No. Stock Qty 5+ 10+ 50+ 100+ Qty
0800-03-300-2M
Standard delivery
60 - 62 working days *
£6.73£4.46£4.13£3.84
Standard delivery 60 - 62 working days
0800-03-300-5M
Standard delivery
60 - 62 working days *
£8.92£5.95£5.49£5.09
Standard delivery 60 - 62 working days
0800-04-301-2M
10 in stock £7.65£5.09£4.69£4.37
Standard delivery 60 - 62 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Environmental conditions: Temperature range: -25 °C/+80 °C

Insulating body: TPU GF, HB according to UL94

Contact bush: CuZn, pre-nickel and gold-plated

Overmolding/handle: TPU  *1

1) material halogen-free



Mating cycles: ≥ 100

Insertion force: ≤ 23 N  *1

Withdrawal force: ≤ 23 N  *2

Protection class: IP67  *3

1) measured with a proper counterpart

2) measured with a proper counterpart

3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart



Electrical data (at Tamb 20 °C)

Contact resistance: ≤ 10 mΩ

Rated current: 4 A (Tamb 40 °C)

Rated voltage: 50 V AC/60 V DC (with pollution degree 3)

Rated impulse voltage: 1,5 kV

Lutronic A Coded Straight M8 to Butt Cut End 22AWG UL-style 20549 PUR cable, available in 3pin, 4pin, 2M or 5M lengths
