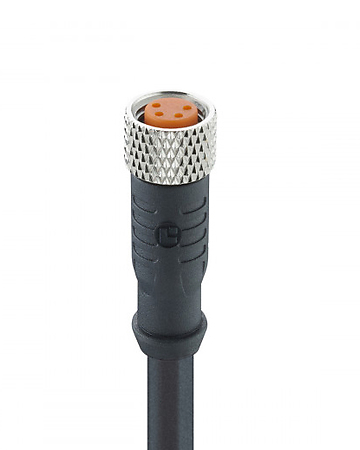

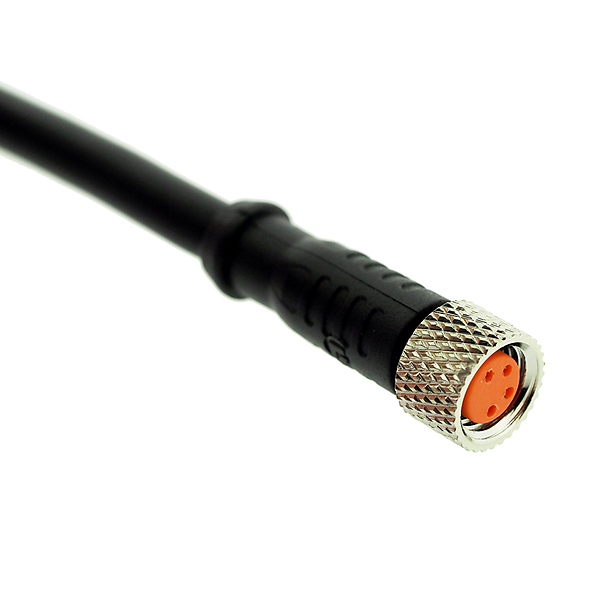

0800 - Lutronic 4 pin M8 Single End Female Cordset (08000)

From: £3.79
Copied to clipboard
  • Actuator/sensor cordset with overmolded connector
  • Cable end 1: M8 female, straight, A-coded, IP67
  • Cable end 2: blunt cut
  • Cable: PUR, black
  • RoHS compliant cULs approved
Part No. Stock Qty 5+ 10+ 50+ 100+ Qty
0800-04-002-2M
10 in stock £6.65£4.43£4.09£3.79
Standard delivery 60 - 62 working days
0800-04-002-5M
10 in stock £8.42£5.59£5.18£4.81
Standard delivery 60 - 62 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Temperature range: -25 °C/+80 °C



Insulating body: TPU GF, HB according to UL94

Contact bush: CuZn, pre-nickel and gold-plated

Overmolding/handle: PVC, HB according to UL94

Mating cycles: ≥ 100

Insertion force: ≤ 23 N  *1

Withdrawal force: ≤ 23 N  *2

Protection class: IP67  *3

1) measured with a proper counterpart

2) measured with a proper counterpart

3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart

Electrical data (at Tamb 20 °C)

Contact resistance: ≤ 10 mΩ

Rated current: 4 A (Tamb 40 °C)

Rated voltage: 50 V AC/60 V DC (with pollution degree 3)

Rated impulse voltage: 1,5 kV

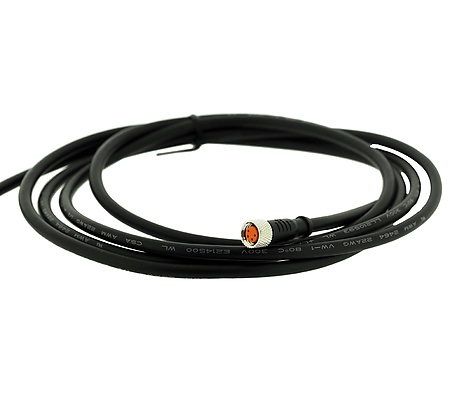

Lutronic Actuator/sensor cordset with overmolded M8 female 4 pin connector; Straight, A-coded and IP67 rated; in 2M and 5M lengths. Suitable for industrial automation and instrumentation applications.
