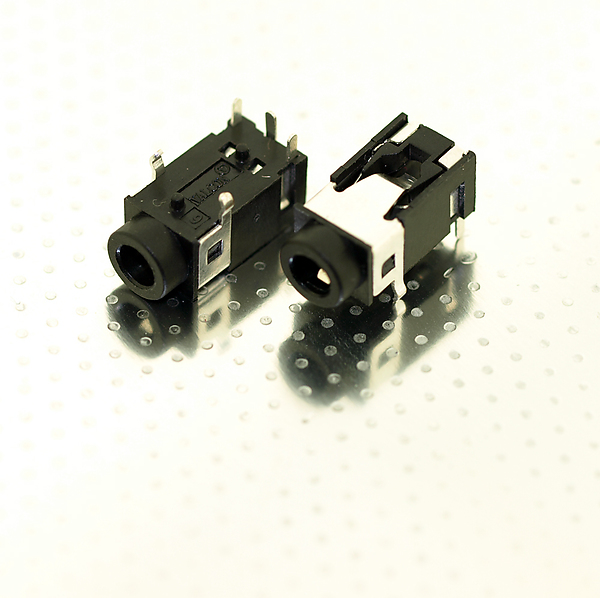

VCP-1401 - 4 Pole Stereo AV Jack (VCP14)

From: £0.18
Copied to clipboard
  • Valcon quality component
  • Through hole PCB mount
  • 4 Pole AV jack TRRS no switching
  • RoHS compliant
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
VCP-1401-TE-01
514 in stock £0.29£0.24£0.21£0.18
You have ordered more than we have in stock, Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material (5): PBT Thermoplastic UL94V-0 Black

Contact Material (1,2 & 3): Phosphor Bronze (QSn6.5-0.1T t=0.25)

Shield Material (4): Brass (H62T t=0.4)

Contact Plating: Tin plated over Ni underplate

DWV: 500V AC for 1 minute

Insulation Resistance: 100MΩ min. @ 500V DC

Contact Resistance: 50mΩ Max.

Operating Temperature: -25°C to +85°C

Cycle rate: 5000 min.

Insertion/Extraction Force: 0.4kg - 3.0kg / 0.3kg - 3.0kg

This Valcon 4 pole AV jack is a through hole PCB mount AV TRRS type
