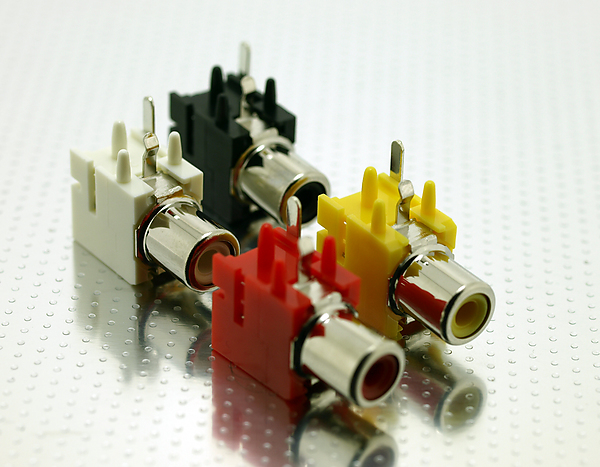

UP-011 - Valcon RCA Type Right Angle Mount Phono Jack (UP011)

From: £0.13
Copied to clipboard
  • Right angle through hole PCB mount
  • 23mm profile
  • Coloured body options
  • RoHS Compliant
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
UP-011-C-B-R
934 in stock £0.26£0.21£0.18£0.13
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: PBT UL94V-0 (Black, White, Yellow or Red)
Contact Material: Copper Alloy
Contact Plating: Tin over Ni plating
DWV: 500V AC  for 1 minute
Insulation Resistance: 100MΩ min. @ 500V DC
Contact Resistance: 30mΩ Max. / 60mΩ Max (after durability test)
Operating Temperature:    -25°C to +80°C
