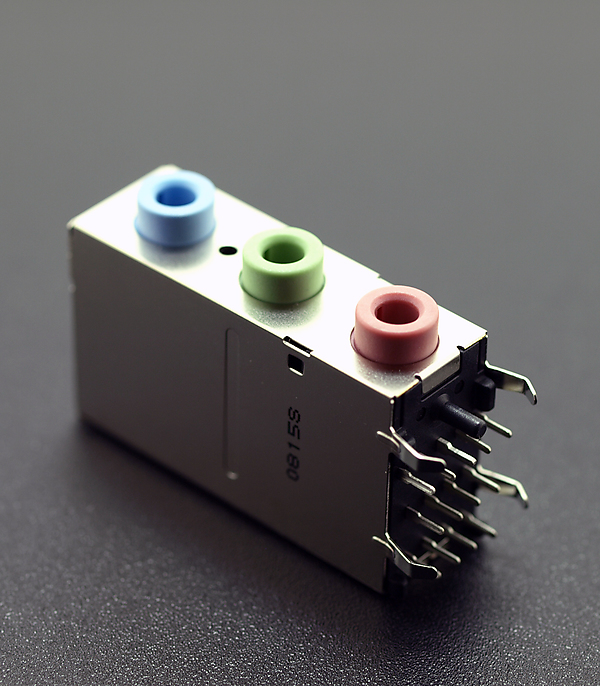

STX4335 - Kycon 3.5mm Audio Jack Triple Stacked in PC99 Colours (STX43)

From: £1.28
Copied to clipboard
  • Vertical through hole PCB mount
  • Kycon CSA (File no LR78160) approved product
  • Triple stack of PC99 - Blue-Green-Pink ports
  • 1000 mating cycles
Part No. Stock Qty 50+ 100+ 500+ 1000+ Qty
50 per pack
140 in stock £2.01£1.86£1.72£1.28
You have ordered more than we have in stock, Standard delivery 10 - 12 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Dielectric Strength 500V AC RMS for 1 Minute

Insulation Resistance >100 Megohms Min. at 500V DC

Contact Resistance Before Durability Test 50 milliohms Max. After Durability Test 100 milliohms Max.

Operating Temperature -25°C to +100°C

Voltage Rating 12V DC

Current Rating 1 A

Insertion Force: 0.4kg - 3.0kg

Extraction Force: 0.4kg - 3.0kg

RoHS Compliant

This PC99 tri-colour triple stack connector from Kycon provides an all in one 3.5mm audio PCB mounting solution. Blue-Green-Pink ports, 1000 mating cycles, RoHS compliant, CSA and UL approved.
