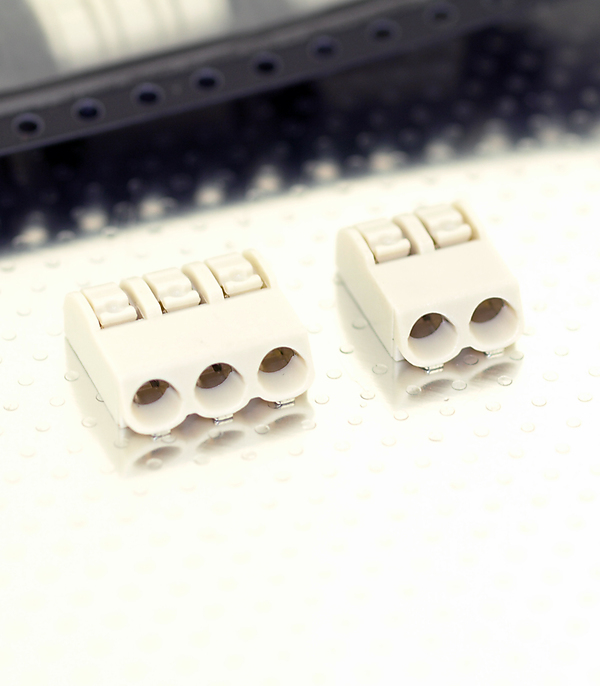

VTBL - Valcon 6mm Surface Mount LED Terminal Block (VTBL6)

From: £0.45
Copied to clipboard
  • Push-button type wire trap connection
  • 2 & 3 position available as standard
  • 6mm pitch
  • Suitable for LED lighting & other industrial applications



*OBSOLETED ITEM - VLT Series for alternative option*

Part No. Stock Qty 10000+ Qty
VTBL-152-6-2P
1x2 positions
Standard delivery
15 - 17 working days *
£0.45
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
VTBL-152-6-3P
1x3 positions
Standard delivery
15 - 17 working days *
£0.60
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Pin header:  Brass,Tin plated

Housing: PA4T,UL94V-0

Rated Voltag): 320V

Rated Current: 9A

Contact Resistance: 20mΩ

Insulation Resistance: 5000MΩ/1000V

Withstanding Voltage: AC1500V/1min

Wire Range: 24-18AWG 0.75mm²

Temperature Range: -40°C~ +105°C

MAX Soldering: +250°C, 5 Seconds

Strip length: 7mm

RoHS Compliant

Valcon VTBL series wire trap terminal block suitable for LED lighting termination and other industrial applications.
