| Part No. | Stock Qty | 1+ | 100+ | 500+ | 1000+ | Qty |
|---|---|---|---|---|---|---|
|
MA331-500-M10
1x10 position |
1600 in stock | £0.69 | £0.69 | £0.69 | £0.69 | |
|
MA331-500-M2
1x2 positions |
2589 in stock | £0.32 | £0.26 | £0.23 | £0.19 | |
|
MA331-500-M3
1x3 positions |
3060 in stock | £0.48 | £0.40 | £0.32 | £0.23 | |
|
MA331-500-M4
1x4 positions |
30 in stock | £0.68 | £0.54 | £0.495 | £0.45 | |
|
MA331-500-M5
1x5 positions |
Standard delivery 30 - 32 working days * |
£0.34 | £0.34 | £0.34 | £0.34 | |
|
MA331-500-M8
1x8 positions |
Standard delivery 30 - 32 working days * |
£0.56 | £0.56 | £0.56 | £0.56 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Housing Material: PA 66
Spring: Brass, Gold, Tin, or Ni Plated
Contact: Brass, Tin Plated
Screw Thread: M2.6, Steel, Zinc Plated
Wire Size: 14 ~ 16AWG
PCB Hole: ø1.4mm
Tightening Torque: 4.0Lb-in Max
Connection in acc. with standard EN-VDE
Nominal Current IN : 10A
Maximum load current: 10A
Insulating Material: PA
Inflammability Class acc. to: UL94V0
Nominal Voltage, UL/CUL: 300V
Nominal Current, UL/CUL: 10A

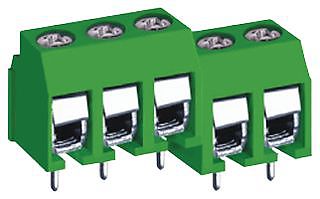

DECA Switchlab 10AMP terminal block in 5mm pitch, 2, 3 or 4 positions modular interlocking design, 10mm PCB profile, Green colour PA66
Toby can interlock your requirement from 2 pins upwards, turning zero stock into next day delivery, Contact Toby now to make your FAST STOCK requirement.
