Valcon

DPC - Valcon 7.5 Amp 4 Pin DC Power Plug & Cable Assemblies (DPC3)

From: £4.69
Copied to clipboard

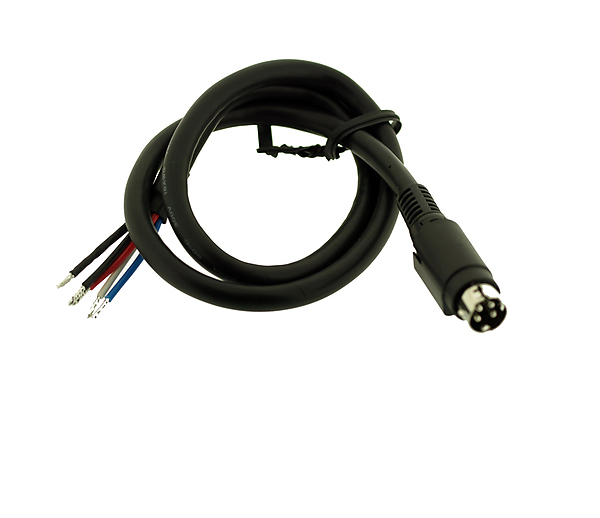

  • 4 Pin Power 7.5 Amp 50cm UL2464 Cable Assembly
  • 4 power wires and a drain wire
  • Single plug end to stripped & tinned wire end
  • Mates with PCB Connectors DC-003-x-R Series
  • Self-assembly kit available DP-003-R
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
DPC-003
0.5 Metre
417 in stock £7.76£6.20£5.18£4.69
When ordering more than in stock, please contact us to confirm delivery time.
DPC-003-1.5M
1.5 Metre
Standard delivery
30 - 32 working days *
£16.67£16.67£10.18£7.93
When ordering more than in stock, please contact us to confirm delivery time.
DPC-003-3M
3 Metre
Standard delivery
30 - 32 working days *
£25.13£25.13£20.11£16.77
When ordering more than in stock, please contact us to confirm delivery time.
DPC-003-5M
5 Metre
Standard delivery
30 - 32 working days *
£30.76£30.76£24.60£20.51
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Contact Resistance:30 milliOhms

Current Capacity:7.5Amps 20 VDC

DWV:250V AC for 1 minute

Insulation Resistance:DC 250V 50 MOhms

Durability:1000 Cycles

Insertion Force:3.5kg Max.

Extraction Force:0.5kg ~ 2.5kg

Applicable Wire Sizes:Awg 18 Max

Cable style UL2464

Black Cable type AWG 20 x 4 & + drain wire (2 Black/1Red/1 White/1 blue)

RoHS compliant

Valcon low-cost push-pull type pre-assembled cable mount DIN 422 DC power plugs, terminates with Valcon UL2464 bulk cable and mates with Valcon PCB and panel mount DC power sockets. Cable ends are stripped and tinned wires.

500mm Length is the standard stocked length. Other lengths are available on request and may be subject to MOQ.
