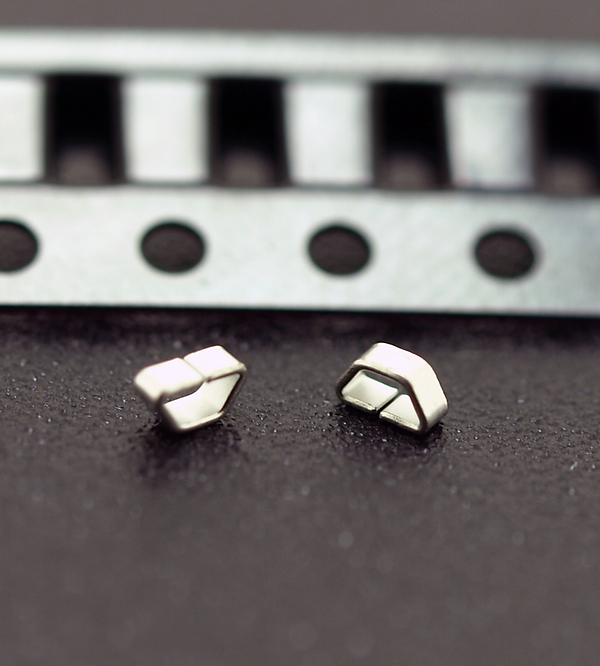

TP-108-02 Surface Mount Taped & Reeled Test Point (TP108)

From: £0.05
  • Compact design, ultra-low profile
  • Small footprint SMT test point
  • About the same footprint as a 1206 chip capacitor

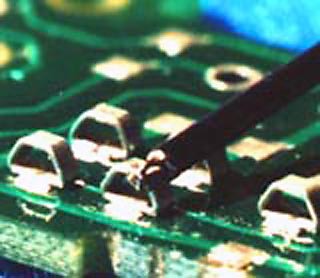

  • Secure anchoring point for miniature test points and j-hooks
Part No. Stock Qty 1000+ 5000+ 10000+ 25000+ Qty
TP-108-02
1000 Per Reel
90000 in stock £0.12£0.10£0.07£0.05

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Material: .010" x .040" Phosphor Bronze #510 Alloy

Finish: .0001 Matte Tin over .0001 Nickel or .0001" Min. Silver over .00005" Min. Copper

Tape Material: 8mm Wide;

Pitch: 4mm;

Conductive polycarbonate carrier meets ANSI/EIA-481 Standard

Reel Size: TP-108-02 = 7" diameter: 1000 pieces per reel

Pad Size: .070" x .135"

Maximum Current: 2.0 amperes
