PJ-201 Wire Form Test Points (PJ201)

From: £0.04
Copied to clipboard
  • Manufactured by Components Corporation
  • Preform wire jumper
  • Excellent above board clearance

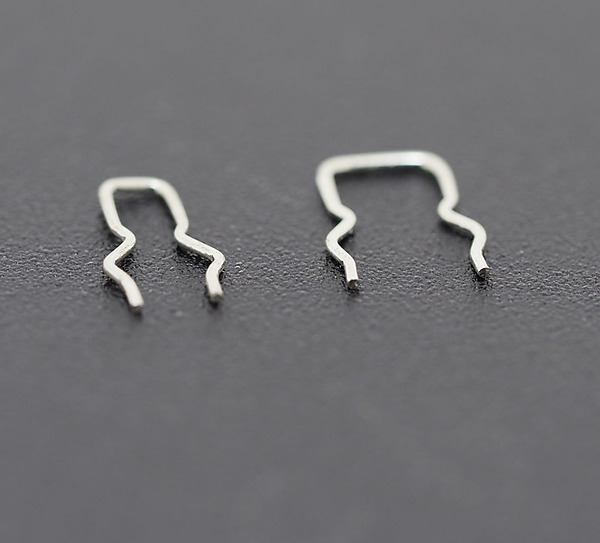

  • Kinked leg design for positive retention in rugged installations
  • Can provide a hard wire circuit board logic programming solution
  • MOQ & multiples may apply
Part No. Stock Qty 100+ 500+ 1000+ Qty
PJ-201-20
23657 in stock £0.06£0.05£0.04
Standard delivery 10 - 12 working days
PJ-201-25
10544 in stock £0.06£0.05£0.04
Standard delivery 10 - 12 working days
PJ-201-30
1134 in stock £0.08£0.07£0.06
Standard delivery 10 - 12 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Material: 70/30 Brass Wire

Matte Tin plating over Nickel

Max Current: 2 Amps

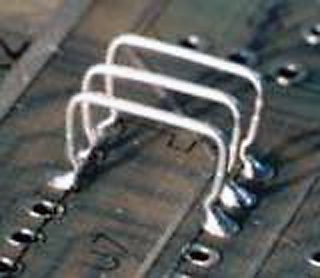

The PJ-201 series is the low cost alternative for the circuit designer's printed circuit mounted, jumper requirements. Numerous standard offerings in spacing dimensions eliminate time consuming and costly fabrication of jumpers by production personnel. The preset, "above board" positioning of this series guarantees adequate clearance across circuit board paths and precludes the need for expensive teflon insulation in many applications.

The exclusive detented leg design ensures positive positioning and retention of the PJ-201 series during wave soldering operations. Due to its spring brass construction, this jumper will provide a rugged installation, resistant to damage and possible short circuits. As well as serving a jumper function, the PJ-201 can provide a simple, reliable and economical means for the "hard wire" programming of circuit board logic. Operations of multi-function, logic card modules may be permanently dedicated through the cutting of appropriate PJ-201 jumpers on the board.

Certificate of Compliance with Directive 2002/95/EC RoHS and REACH Regulations EC 1907/2006T
