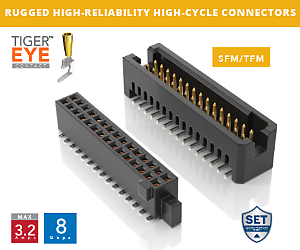

Samtec Micro Rugged SFM/TFM 1.27mm Pitch Tiger Eye™ Systems

High-Cycle, High-Reliability

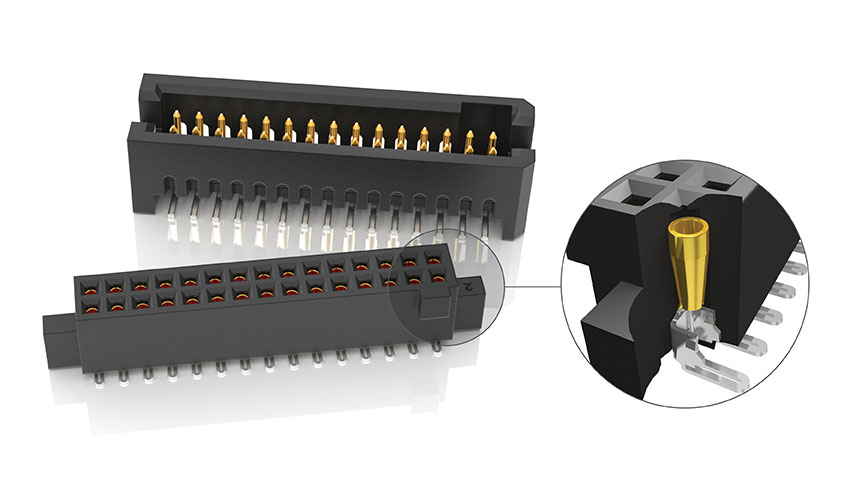

To introduce Samtec's SFM/TFM, first we need to drill into what makes these connectors an exceptional choice for rugged applications. These micro rugged interconnects feature Samtec’s Tiger Eye™ contact system for high-reliability and high-cycle applications. The multi-finger, BeCu contacts provide redundant points of contact along with the best combination of mechanical and electrical properties. Increased design flexibility is achieved with the choice of surface mount or through-hole termination, as well as vertical or right-angle orientations and ruggedizing features such as friction latching, weld tabs and locking clips.Tiger Eye™ contacts are available in three pitches 0.80mm, 1.27mm and 2.00mm,

Here we focus one SFM/TFM Series, a 1.27mm micro pitch, High-Cycle, High-Reliability Tiger Eye™ System. The system highlights are as follows:

• Tiger Eye™, Samtec’s most rugged contact system rated to 1,000+ mating cycles
• Screw down, locking clip, and weld tab ruggedizing options
• Shrouded, polarized and keyed
• Surface mount or through-hole tails
• 6 -12mm vertical stack heights and right-angle available
• Severe Environment Testing (SET) qualified (SFM/TFM)
• Discrete wire and IDC cable assemblies available SFSS/SFSD/TSDF

Design & Buy with Toby

Toby provides design assistance with samples and models to help you find your Micro Rugged solution fast. Don't forget to login to download your 3D Model.

No Login? REGISTER HERE

Click the part numbers below to learn more.

TRY TOBY FIRST

Toby.co.uk customers can configure parts and download Samtec’s basic models directly from our product pages. The models are acceptable for form, fit and function in most cases.

Technical Support:

Related Mate, Design Qualification Test Reports, SI Models, HSPICE Models, Power Rating, Data Rate Characterisation reports, Severe Environment Test Report, Mixed Gas Flow, Extended Life Cycle and Compliance reports, all available on request or for download at Samtec.com or via sales@toby.co.uk

Samtec 3D Models are accurate to the best of our knowledge and are provided as informational in nature. However, due to technical progress, products are subject to change without notice. Please Contact Toby for the latest product print and the most current and up-to-date information for the product.

Toby supports free of charge physical samples for design validation purposes and can provide qualification test and mated set information for most Samtec series.

So, whether you are designing digitally or prefer an analogue approach or a combo of both! Toby’s got you covered.
