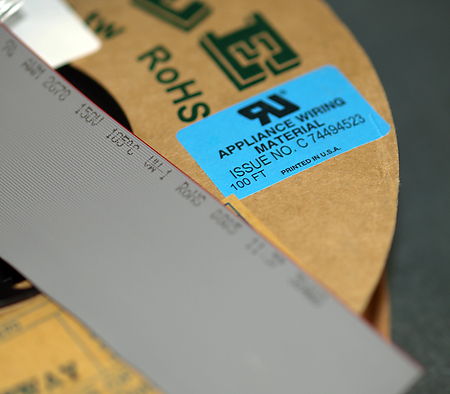

L03 Web Pic 1

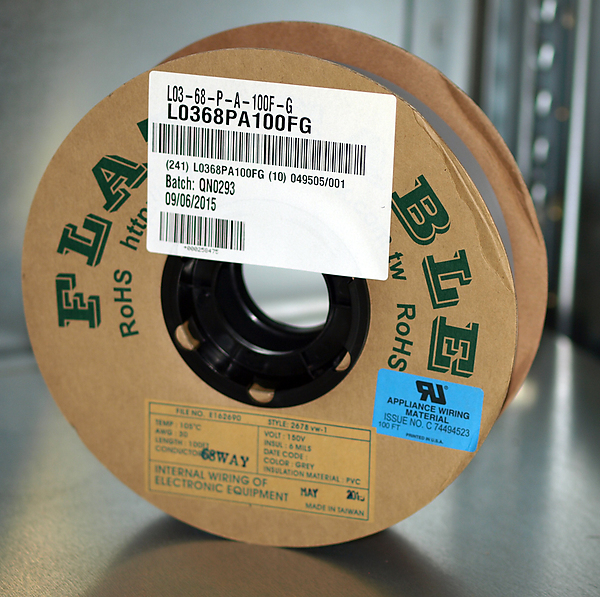

L03 Web Pic 1
L03 Web Pic 2

L03 - Valcon 0.635mm IDC Flat Ribbon Cable - Fast Stock (L03)

From: £38.49
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can assemble your IDC requirements for Fast Stock delivery >> Contact Toby Now!

  • UL approved product (best quality available)
  • 30AWG stranded and solid core wire available
  • 100FT Reels as standard - MOQ 1 reel
  • Available as custom cable assemblies - contact us
Part No. Stock Qty 1+ 5+ Qty
L03-10-P-A-100F-G
10 Positions x 100 ft
9 in stock £45.99£38.49
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-12-P-A-100F-G
12 Positions x 100 ft
Standard delivery
15 - 17 working days *
£46.49£38.99
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-20-P-A-100F-G
20 Positions x 100 ft
5 in stock £46.99£39.49
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-26-P-A-100F-G
26 Positions x 100 ft
7 in stock £49.99£41.49
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-30-P-A-100F-G
30 Positions x 100 ft
1 in stock £65.19£54.59
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-34-P-A-100F-G
34 Positions x 100 ft
2 in stock £65.49£54.49
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-40-P-A-100F-G
40 Positions x 100 ft
4 in stock £69.00£57.50
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-50-P-A-100F-G
50 Positions x 100 ft
18 in stock £76.69£63.99
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-68-P-A-100F-G
68 Positions x 100 ft
3 in stock £104.29£86.89
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
L03-80-P-A-100F-G
80 Positions x 100 ft
2 in stock £116.49£97.49
You have ordered more than we have in stock, Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

UL File No. : E162690

UL Style : 2678

Operating Temperature : -20°C to +105°C

Flammability Rating : UL-VW-1

Voltage Rating : 150V

Insulation Material : Polyvinyl Chloride (PVC)

Conductor : #30AWG (7*0.102) Stranded Tinned Copper

Color : Grey With Red Edge

Impedance : 75Ω (Unbalanced)

Capacitance : 22.5 pF/ft.

Inductance: .317 uH/ft

Propagation Delay : 1.7 ns/ft.

Insulation Resistance : 1GΩ /M min

RoHS compliant

Valcon IDC 2.54mm pitch IDC cable socket with strain relief. Toby can make your IDC cable assembly, contact Toby now to find out more about how Toby can deliver >>Fast Stock Solutions>> for you.
