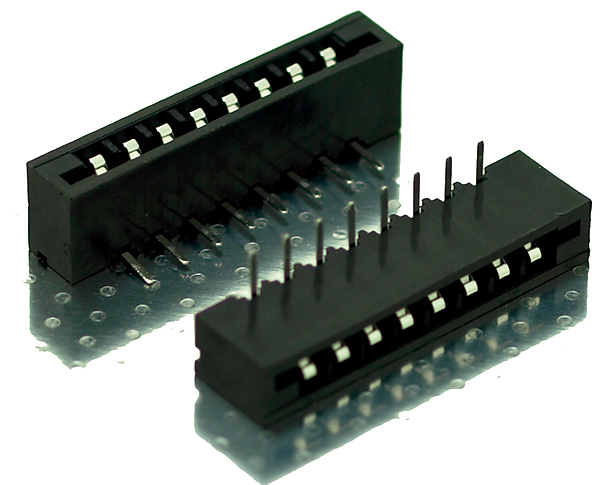

VPFC-RL2-xx-LF WEB Pic

VFPCR - Valcon 2.54mm Right Angle FFC Socket, 4.5mm PCB Profile (VFPCR)

From: £0.06
Copied to clipboard
  • 2.54mm pitch single row through hole PCB footprint
  • Right Angle PCB mounting
  • 4.5mm PCB profile, 3mm solder tails
  • Special Offer Pricing whilst current stocks last
  • MOQ & multiples may apply for future orders
Part No. Stock Qty 10+ Qty
VFPC-RL2-04-LF
1000 in stock £0.06
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFPC-RL2-06-LF
939 in stock £0.06
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFPC-RL2-08-LF
967 in stock £0.065
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFPC-RL2-21-LF
5988 in stock £0.16
You have ordered more than we have in stock, Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator: Glass-Reinforced Thermoplastic

Contact: Phospher Bronze

Plating: Tin Plated Over Nickel

Voltage Rating: 250 VAC RMS

Current Rating: 1 AMP

DWV: 1000 VAC RMS 60 Hz - 1 minute

Insulation Resistance: 5000 MΩ min at 500 VDC

Contact Resistance: 25 mΩ Max

Durability: 20 cycles

Temperature Range: -40°C to 105°C
