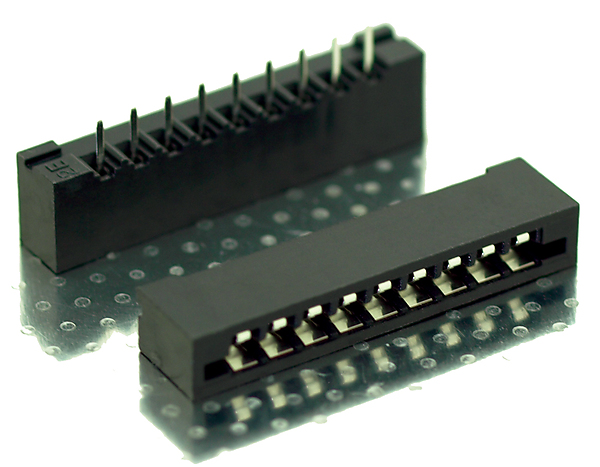

VPFC-DL2-xx-LF WEB Pic

VFPC - Valcon 2.54mm Vertical FFC Socket, 6.7mm PCB profile (VFPCD)

From: £0.07
Copied to clipboard
  • 2.54mm pitch single row through hole PCB footprint
  • Vertical PCB mounting
  • 6.7mm PCB profile, 3mm solder tails
  • Special Offer Pricing whilst current stocks last
  • MOQ & multiples may apply for future orders
Part No. Stock Qty 10+ Qty
VFPC-DL2-02-LF
980 in stock £0.07
When ordering more than in stock, please contact us to confirm delivery time.
VFPC-DL2-09-LF
9844 in stock £0.10
When ordering more than in stock, please contact us to confirm delivery time.
VFPC-DL2-12-LF
519 in stock £0.14
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator: Glass-Reinforced Thermoplastic

Contact: Phospher Bronze

Plating: Tin Plated Over Nickel

Voltage Rating: 250 VAC RMS

Current Rating: 1 AMP

DWV: 1000 VAC RMS 60 Hz - 1 minute

Insulation Resistance: 5000 MΩ min at 500 VDC

Contact Resistance: 25 mΩ Max

Durability: 20 cycles

Temperature Range: -40°C to 105°C
