3M

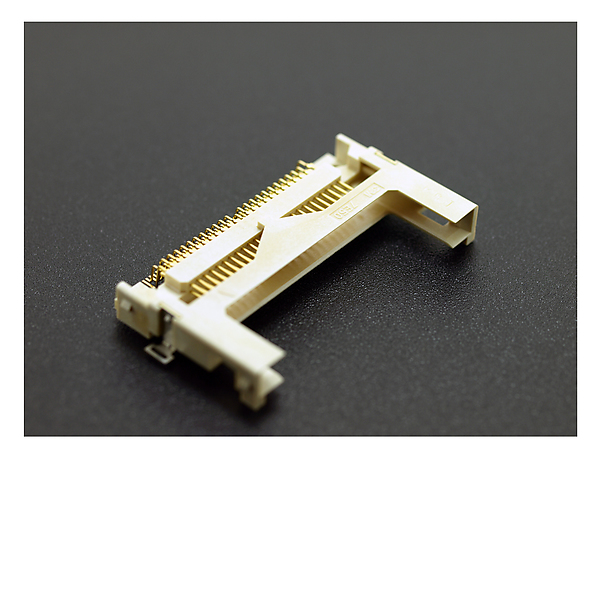

N7E50 - 3M Type 1 Surface Mount Compact Flash Card Connector (N7E50)

From: £3.32
Copied to clipboard
  • Meets CFA standards
  • Single row solder tails with 0.635 mm spacing
  • Board component clearance with 1.64 mm standoff
  • Ejector option for easy removal of CF Card
  • Retainer clip option permits stability for mobile and high vibration applications
Part No. Stock Qty 100+ Qty
N7E50-7516PK-20
4 in stock £3.32
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulation Material: Liquid Crystal Polyester (LCP) Flammability: UL 94V-0 Color: Beige

Contact Material: Copper Alloy

Plating Underplating: 100μ″ [ 2.54μm ] Nickel

Wiping Area: Gold flash over 80/20 Palladium Nickel, Lubricated (see Ordering Information)

Solder Tails: Gold flash (see Ordering Information)

Current Rating: .5 A

Insulation Resistance: >1 × 109 Ω at 500 VDC, >1 × 108 Ω at 500 VDC after Environmental Conditioning

Withstanding Voltage: 500 VRMS at Sea Level

Temperature Rating: -55°C to +85°C

Process Rating: Maximum 260°C (per J-STD-020C)

A high quality Compact Flash connector from 3M
