C33 SERIES web Pic tif

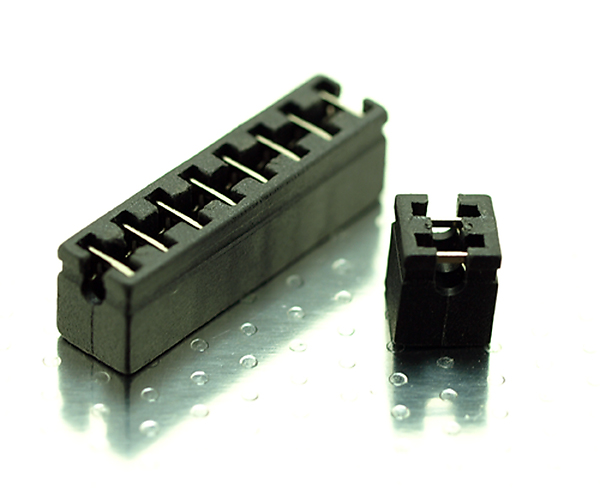

C33 - Valcon 2.54mm Pitch Multi-Position Jumper Link / Shunt (C33)

From: £0.055
  • 2.54mm pitch dual row
  • 6mm profile
  • 2x2 to 2x10 positions available
  • Gold flash plated contact
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
C33-GAG1-2x10-G
2x10 Positions
Standard delivery
15 - 17 working days *
£0.43£0.36£0.29£0.24
C33-GAG1-2x2-G
2x2 Positions
548 in stock £0.10£0.08£0.07£0.055
C33-GAG1-2x3-G
2x3 Positions
1291 in stock £0.15£0.12£0.10£0.08
C33-GAG1-2x4-G
2x4 Positions
620 in stock £0.20£0.16£0.13£0.11
C33-GAG1-2x5-G
2x5 Positions
3104 in stock £0.24£0.20£0.16£0.13
C33-GAG1-2x6-G
2x6 Positions
1955 in stock £0.29£0.24£0.19£0.16
C33-GAG1-2x7-G
2x7 Positions
Standard delivery
15 - 17 working days *
£0.34£0.29£0.23£0.19
C33-GAG1-2x8-G
2x8 Positions
784 in stock £0.39£0.33£0.26£0.21

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Material: Brass

Contact Plating: Gold Flash Plated

Body: PBT UL94V-0 Rated

Rated Current: 3A -

DWV - AC500V

Insulation Resistance: 5000 MΩ Max.

Operating Temperature: -40°C to +105°C

RoHS compliant
