SMTP-S-44-R-0 PIC

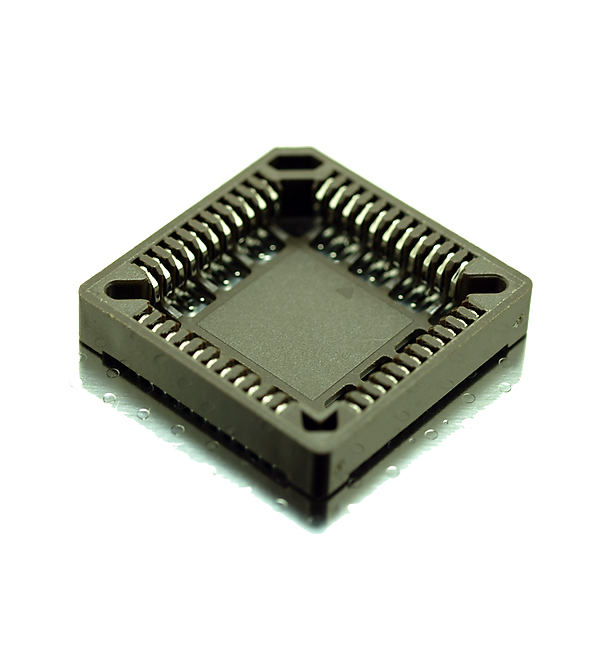

SMTP - Valcon Surface Mount PLCC Sockets (SMTP)

From: £0.23
Copied to clipboard
  • Surface mount PLCC PCB footprint
  • Low 4.5mm PCB profile
  • Available with PCB locating pegs (suffix -1)
  • For JEDEC PLCC packages
  • MOQ & multiples may apply
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
SMTP-S-20-R-0
39 per tube
819 in stock £0.43£0.36£0.29£0.24
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
SMTP-S-28-R-0
33 per tube
1980 in stock £0.42£0.35£0.28£0.23
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
SMTP-S-32-R-0
29 per tube
2030 in stock £0.44£0.37£0.29£0.27
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
SMTP-S-32-R-1
28 per tube
176 in stock £0.55£0.45£0.36£0.30
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
SMTP-S-44-R-0
25 per tube
2596 in stock £0.47£0.39£0.31£0.26
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
SMTP-S-44-R-1
25 per tube
429 in stock £0.82£0.68£0.55£0.45
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
SMTP-S-84-R-0
16 per tube
832 in stock £0.94£0.79£0.63£0.52
You have ordered more than we have in stock, Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: Hi-temp PPS (240°C) UL94V-0 Black

Contact Material: Phosphor Bronze (JIS 5210)

Contact Plating: Tin over Ni

Current Rating: 1A Capacitance: 1.0 pF Max.

Insulation Resistance: 1000MΩ min.

Contact Resistance: 30mΩ Max.

DWV: AC 600V AC/1 minute min.

Operating Temperature: -50°C to +105°C

Soldering Temperature: 260°C for max. 5 seconds

RoHs Compliant
