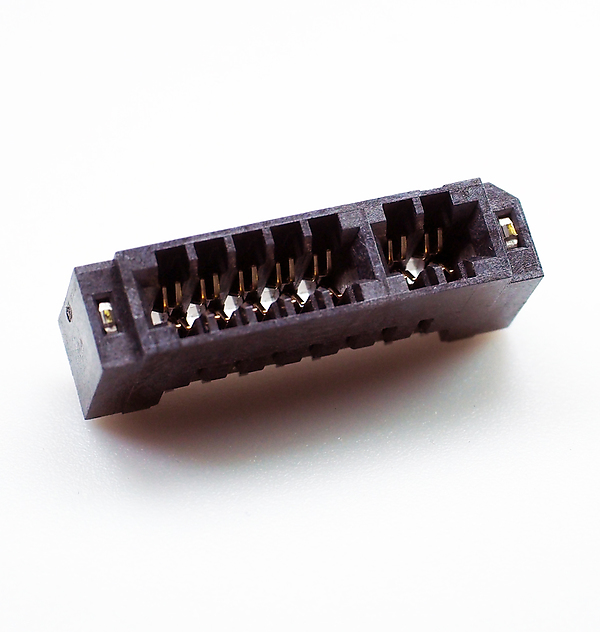

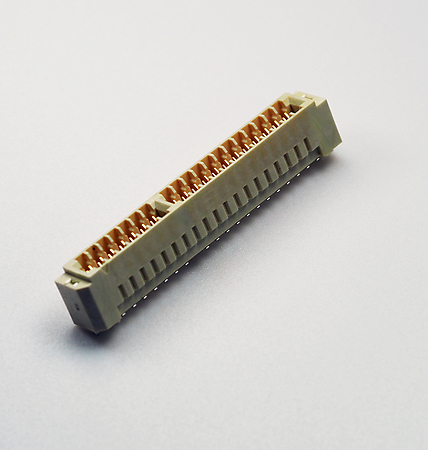

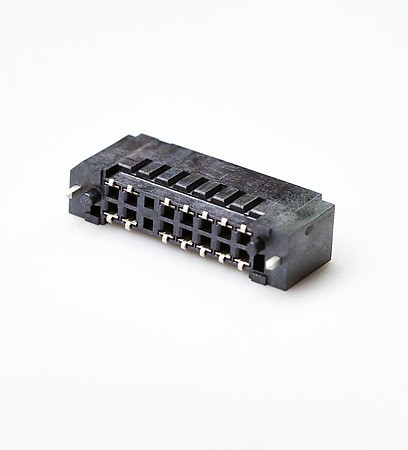

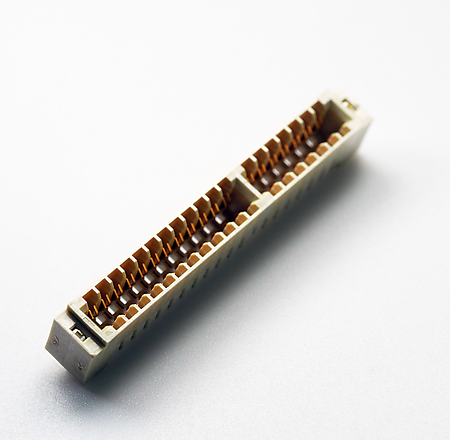

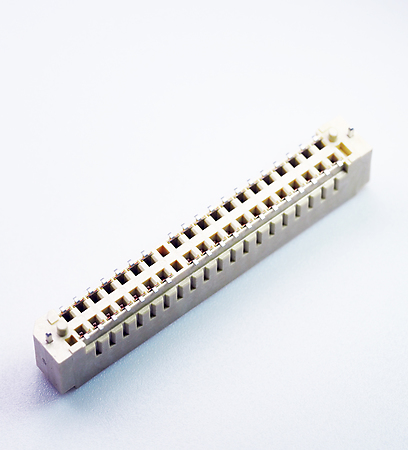

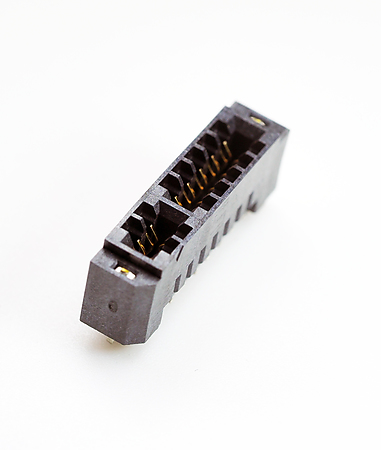

MEC2 Samtec 2mm Mini Edge Card Connector (MEC2)

From: £1.27
Copied to clipboard
  • 2.00 mm (.0787") pitch
  • Accepts .062" (1.60 mm) and .093" (2.36 mm) thick cards
  • Double row design up to 100 pins polarized
  • Rugged weld tab option
  • Samtec 28+ Gbps Solution
Data sheet Technical Specification Product Configurator
Part No. Stock Qty 1+ 250+ 500+ 1000+ 2500+ Qty
MEC2-05-01-L-DV-WT   3D CAD
Standard delivery
6 - 8 working days *
£2.10£1.81£1.57£1.41£1.36
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
MEC2-05-01-L-TH1-WT   3D CAD
Standard delivery
15 - 17 working days *
£2.13£1.81£1.57£1.41£1.36
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
MEC2-08-01-L-DV   3D CAD
Standard delivery
6 - 8 working days *
£2.10£1.76£1.50£1.33£1.27
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
MEC2-08-01-L-DV-NP-WT   3D CAD
Standard delivery
7 - 9 working days *
£2.25£1.925£1.67£1.495£1.44
You have ordered more than we have in stock, Standard delivery 7 - 9 working days
MEC2-08-01-L-DV-WT   3D CAD
51 in stock £2.25£1.93£1.67£1.49£1.44
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
MEC2-08-02-L-DV-WT   3D CAD
25 in stock £2.25£1.93£1.67£1.49£1.44
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
MEC2-20-01-L-DV-WT   3D CAD
Standard delivery
6 - 8 working days *
£2.79£2.36£2.04£1.82£1.76
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
MEC2-20-02-L-DV-WT   3D CAD
1 in stock £2.79£2.36£2.04£1.82£1.76
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
MEC2-30-01-L-DV-WT   3D CAD
Standard delivery
6 - 8 working days *
£3.02£2.56£2.21£1.97£1.90
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
MEC2-30-01-L-TH1-NP-WT   3D CAD
Standard delivery
15 - 17 working days *
£3.02£2.56£2.21£1.97£1.90
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
MEC2-50-01-L-DV-WT   3D CAD
Standard delivery
6 - 8 working days *
£3.91£3.31£2.84£2.53£2.44
You have ordered more than we have in stock, Standard delivery 6 - 8 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • Video

Insulator Material: –01=Black Liquid Crystal Polymer –02=Natural Liquid Crystal Polymer

Contact Material: BeCu Plating: Sn or Au over 50 µ" (1.27 µm) Ni

Operating Temp Range: -55 °C to +125 °C

Current Rating: 3.5 A per pin (2 adjacent pins powered)

Voltage Rating: 238 VAC RoHS Compliant:
