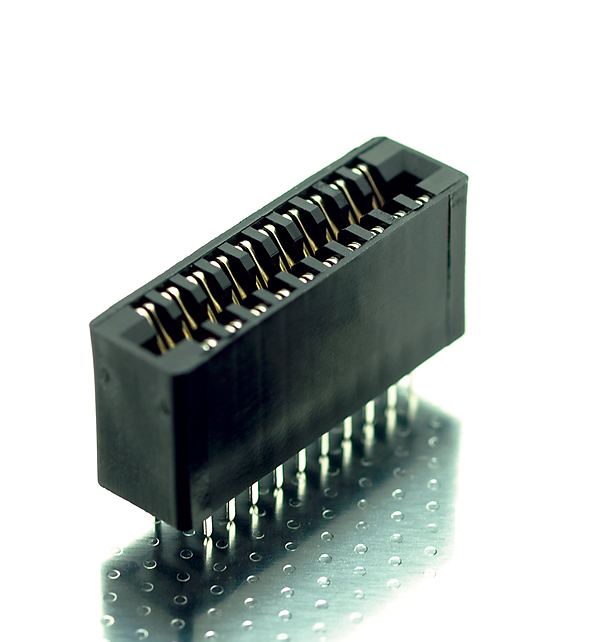

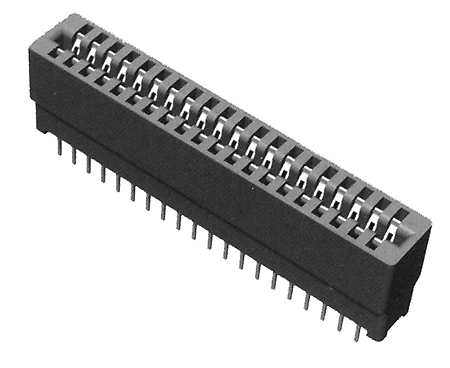

802 - Valcon 2.54mm Vertical Card Edge Socket (802S)

From: £0.45
Copied to clipboard
  • 2.54mm x 5.08mm cross pitch PCB footprint
  • 15.5mm PCB profile
  • 8.4mm mating PCB insertion depth
  • No. of contacts 04 to 120 pins
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
802-S-04-S-R
04 Positions
490 in stock £0.80£0.67£0.54£0.45
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
802-S-10-S-R
10 Positions
1655 in stock £0.89£0.74£0.59£0.49
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
802-S-12-S-R
12 Positions
5593 in stock £0.95£0.79£0.63£0.53
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
802-S-20-S-R
20 Positions
1227 in stock £1.14£0.96£0.77£0.64
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
802-S-34-S-R
34 Positions
632 in stock £1.58£1.32£1.05£0.88
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
802-S-40-S-R
40 Positions
1568 in stock £1.73£1.44£1.15£0.96
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
802-S-62-S-R
62 Positions
69 in stock £2.67£2.23£1.78£1.48
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
802-S-72-S-R
72 Positions
141 in stock £2.85£2.37£1.89£1.58
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
802-S-98-S-R
98 Positions
666 in stock £3.30£2.76£2.20£1.83
You have ordered more than we have in stock, Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: PBT UL94V-0 Black

Contact Material: Phosphor Bronze

PCB Contact Plating: Tin over Ni

Mating Contact: Gold flash plated

Current Rating: 3A

Contact Resistance: 20mΩ Max.

Insulation Resistance: 5000MΩ min.

Voltage Rating: 800V AC/1 minute min.

Operating Temperature: -40°C to +105°C

Insertion/Withdrawl Force: 412/32 grams min per pair

RoHS compliant
