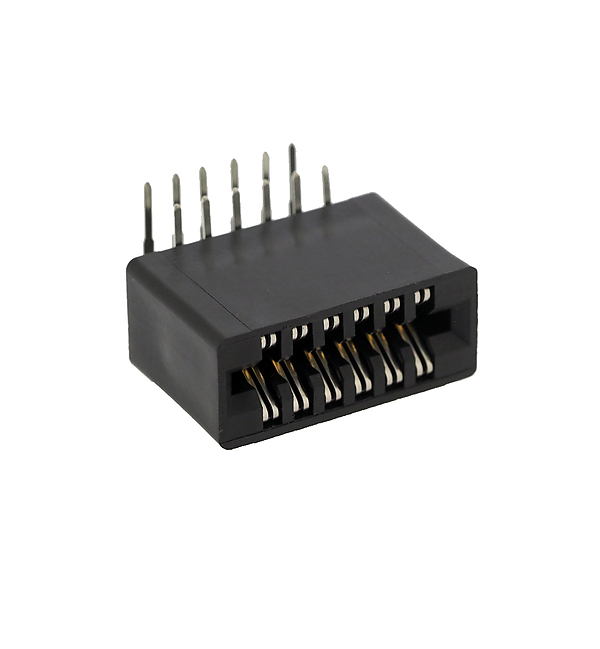

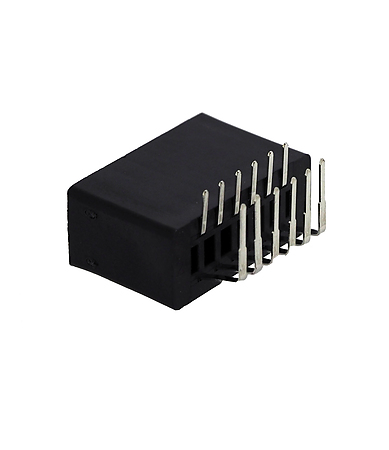

802 - Valcon 2.54mm Right Angle Card Edge Socket (802R)

From: £0.77
Copied to clipboard
  • 2.54mm x 5.08mm pitch
  • Through hole 90 degree PCB mount
  • For 1mm to 1.6mm PCB
  • 9.3mm PCB profile
  • 06 to 72 positions
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
802-R-06-S-R
6 Positions
4 in stock Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
802-R-08-S-R
8 Positions
4 in stock Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
802-R-12-S-R
12 Positions
1292 in stock £1.38£1.14£0.92£0.77
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: PBT UL94V-0 Black

Contact Material: Copper Alloy

PCB Contact Plating: Gold over Nickel

Mating Contact: Gold flash plated

Current Rating: 3A

Contact Resistance: 20mΩ Max.

Insulation Resistance: 5000MΩ min. at 500 VDC

Voltage Rating: 800V AC/1 minute min.

Operating Temperature: -55°C to +105°C

Insertion/Withdrawl Force: 340/28 grams min per pair

RoHS compliant

Valcon 2.54mm x 5.08mm pitch edge card socket connector
