| Part No. | Stock Qty | 1+ | 50+ | 250+ | 1000+ | Qty |
|---|---|---|---|---|---|---|
|
802-H-120S-R
120 Positions |
6427 in stock | £1.44 | £1.24 | £1.03 | £0.79 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Insulator: PA65 +30%GF
Contact: Copper Alloy
Plating: Selective Gold (1μ") over Nickel contact area / Tin (100μ") over Nickel (50μ") solder tails
Voltage Rating: 250 VAC RMS
Current Rating: 1 AMP
Contact Resistance; 30mΩ MAX at 1 AMP DC
DWV: 500 VAC RMS 60Hz for 1 Minute
Insulation Resistance: 1000MΩ Min at 500 VDC
Retention Force: 460 Grams Min Per Contact
Insertion Force: 230 Grams Max Per Contact Pair
Withdrawal Force: 15 Grams Min PerContact Pair
Temperature Range: -55°C to +85°C

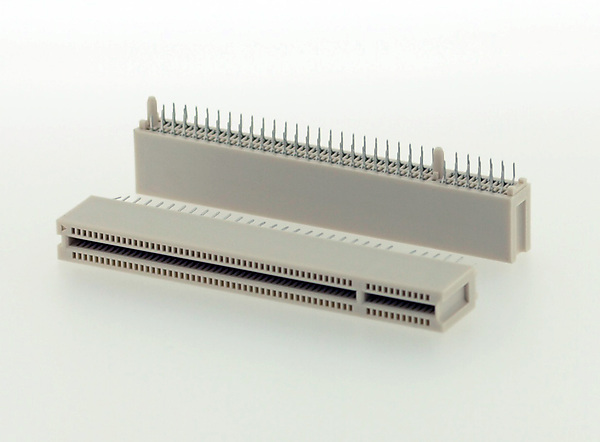

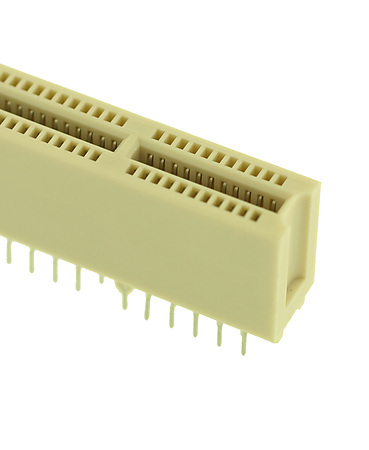

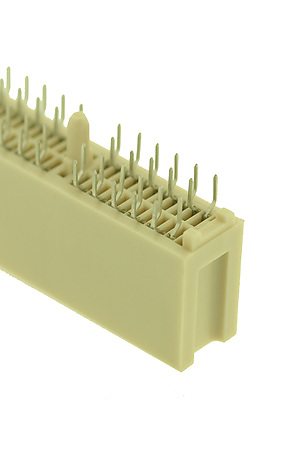

Valcon low cost 120pin PCB edge connector, 24+96 pin configuration
