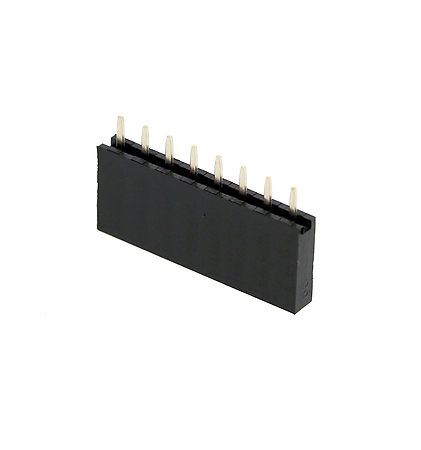

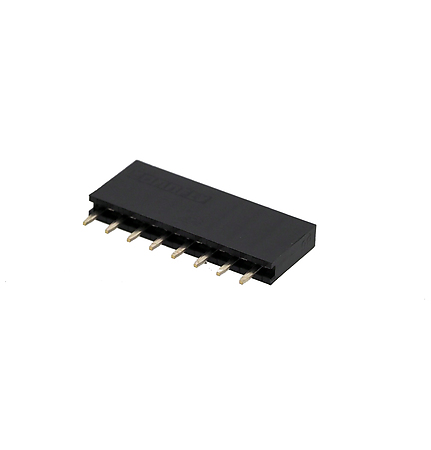

V06 Series Valcon 2.54mm Pitch Single Row PCB Mount Socket (V06S)

From: £0.015
Copied to clipboard
  • Low cost PCB socket
  • 2.54mm dual row through hole PCB footprint
  • Gold flash plated contacts and PCB tails
  • 0.4mm x 0.6mm solder tails, 8.5mm PCB profile
  • Mates with standard Toby 2.54mm pitch pin headers
  • UL approved - E328028
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
V06-1x10-SV-GF-1
1074 in stock £0.09£0.065£0.055£0.048
Standard delivery 15 - 17 working days
V06-1x12-SV-GF-1
2000 in stock £0.10£0.075£0.06£0.05
Standard delivery 15 - 17 working days
V06-1x14-SV-GF-1
980 in stock £0.11£0.085£0.07£0.06
Standard delivery 15 - 17 working days
V06-1x15-SV-GF-1
295 in stock £0.12£0.095£0.08£0.07
Standard delivery 15 - 17 working days
V06-1x16-SV-GF-1
1398 in stock £0.13£0.10£0.09£0.08
Standard delivery 15 - 17 working days
V06-1x2-SV-GF-1
1500 in stock £0.035£0.02£0.018£0.015
Standard delivery 15 - 17 working days
V06-1x20-SV-GF-1
576 in stock £0.16£0.13£0.105£0.09
Standard delivery 15 - 17 working days
V06-1x25-SV-GF-1
945 in stock £0.24£0.16£0.13£0.12
Standard delivery 15 - 17 working days
V06-1x3-SV-GF-1
2000 in stock £0.045£0.03£0.023£0.02
Standard delivery 15 - 17 working days
V06-1x4-SV-GF-1
6693 in stock £0.05£0.04£0.032£0.025
Standard delivery 15 - 17 working days
V06-1x40-SV-GF-1
675 in stock £0.28£0.25£0.23£0.20
Standard delivery 15 - 17 working days
V06-1x5-SV-GF-1
1936 in stock £0.06£0.045£0.038£0.03
Standard delivery 15 - 17 working days
V06-1x6-SV-GF-1
3300 in stock £0.065£0.05£0.04£0.035
Standard delivery 15 - 17 working days
V06-1x8-SV-GF-1
1711 in stock £0.08£0.05£0.044£0.038
Standard delivery 15 - 17 working days
V06-1x9-SV-GF-1
Standard delivery
15 - 17 working days *
Contact UsContact UsContact UsContact Us
Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black PBT UL94V-0

Contact Material: Brass

Contact Plating: Gold flash plated contacts

PCB Contact Plating: Gold flash

Current Rating: 1 Amp

DWV: 500V AC for 1 minute

Insulation Resistance: 3000 MΩ min.

Contact Resistance: 30 mΩ Max.

Operating Temperature: -40°C to +105°C

RoHS compliant

This low cost connector is an excellent industry standard PCB socket from our Valcon range. Design-in Quality - Design-in Value
