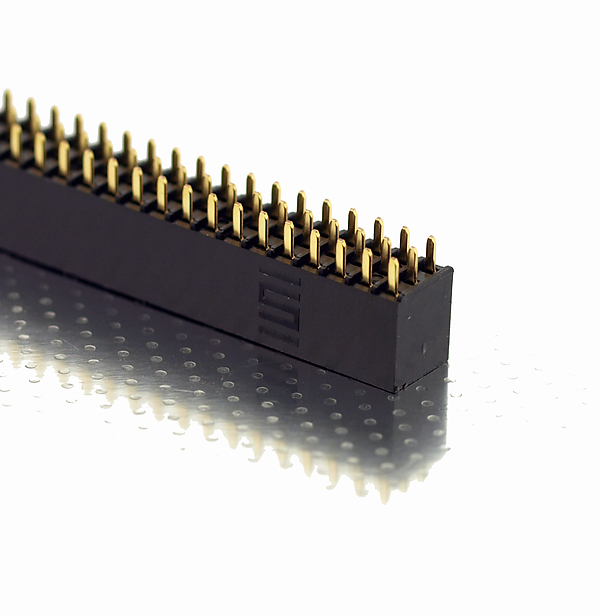

SSW - Samtec 2.54mm Triple or Quad Row Socket Strip, 8.5mm Profile (SSWTQ)

From: £0.162
Copied to clipboard
  • Pitch: .100" (2.54 mm). Row option Q = Double Row .200" (5.08 mm) row space, Outer rows filled only
  • Application: Triple & Quad row, 02 to 50 pins per row
  • Contact System: Tiger Buy™
  • Orientation: Vertical, right-angle
  • Special Features: Standard and low insertion force contacts with standard solder tails
  • Termination: Through-hole
Data sheet Technical Specification Related Products Product Configurator
Part No. Stock Qty Price Breaks Qty
SSW-102-21-G-Q   3D CAD
4x2 Positions 		Standard delivery
2 - 4 working days * 		1+: £1.0350+: £0.99100+: £0.86 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-103-01-F-T   3D CAD
3x3 Positions 		Standard delivery
2 - 4 working days * 		1+: £1.1350+: £1.09100+: £0.94 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-103-01-G-T   3D CAD
3x3 Positions 		Standard delivery
2 - 4 working days * 		1+: £1.6150+: £1.54100+: £1.34 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-103-01-T-T   3D CAD
3x3 Positions 		Standard delivery
2 - 4 working days * 		1+: £0.8750+: £0.83100+: £0.72 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-104-01-G-T   3D CAD
Standard delivery
2 - 4 working days * 		1+: £2.0050+: £1.92100+: £1.67 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-104-02-T-T-RA   3D CAD
3x4 Positions 		Standard delivery
2 - 4 working days * 		1+: £1.2450+: £1.19100+: £1.03 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-105-02-G-T-RA   3D CAD
1x5 Positions 		Standard delivery
2 - 4 working days * 		1+: £2.3350+: £2.24100+: £1.94 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-108-01-T-T   3D CAD
3x8 Positions 		Standard delivery
3 - 5 working days * 		1+: £1.5550+: £1.49100+: £1.29 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-110-01-F-T   3D CAD
10 Positions 		Standard delivery
3 - 5 working days * 		1+: £2.5025+: £2.4050+: £2.08 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-110-01-G-T   3D CAD
Standard delivery
3 - 5 working days * 		1+: £3.5725+: £3.4350+: £2.97 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-110-01-T-T   3D CAD
Standard delivery
3 - 5 working days * 		1+: £1.9350+: £1.86100+: £1.61 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-112-21-G-T   3D CAD
Standard delivery
3 - 5 working days * 		1+: £4.7125+: £4.5350+: £3.93 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-118-01-S-T   3D CAD
3x18 Positions 		Standard delivery
3 - 5 working days * 		1+: £6.7010+: £6.4425+: £5.58 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-119-01-T-Q   3D CAD
4x19 Positions 		Standard delivery
2 - 4 working days * 		1+: £2.6825+: £2.5850+: £2.24 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-120-01-G-T   3D CAD
Standard delivery
4 - 6 working days * 		1+: £7.1510+: £6.8725+: £5.96 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-124-03-G-T   3D CAD
Standard delivery
2 - 4 working days * 		1+: £9.4410+: £9.0725+: £7.86 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-132-01-FM-T   3D CAD
3x32 Positions 		Standard delivery
4 - 6 working days * 		1+: £8.0010+: £7.6925+: £6.67 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-132-01-G-T   3D CAD
3x32 Positions 		Standard delivery
4 - 6 working days * 		1+: £11.4410+: £11.0025+: £9.53 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-132-21-G-T   3D CAD
3x32 Positions 		Standard delivery
4 - 6 working days * 		1+: £12.5710+: £12.0825+: £10.47 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-132-24-G-T   3D CAD
3x32 Positions 		Standard delivery
4 - 6 working days * 		1+: £15.2410+: £14.6525+: £12.70 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-144-21-F-T   3D CAD
3x44 Positions 		Standard delivery
4 - 6 working days * 		1+: £12.0910+: £11.6325+: £10.08 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-144-22-S-T   3D CAD
3x44 Positions 		Standard delivery
4 - 6 working days * 		1+: £18.5710+: £17.8525+: £15.47 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
SSW-148-01-G-T   3D CAD
3x48 way 		Standard delivery
2 - 4 working days * 		1+: £17.1510+: £16.4925+: £14.29 View all prices
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: Black Liquid Crystal Polymer (-S & -D) or Black High Temperature Thermoplastic (-T)

Contact Material: Phosphor Bronze

Plating: Au or Sn over 50 µ" (1.27µm) Ni

Current Rating (TSW/SSW): 5.7 A per pin (1 pin powered per row)

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

Contact Resistance: 10 mW

Insertion Depth: (3.68mm) .145" to (6.35mm) .250"

Insertion Force: (Single contact only) (–S plating) Standard= 6 oz (1.67 N) avg ((0.64 mm) .025" SQ pin)

Low Insertion Force= 3 oz (0.83 N) avg

Normal Force: Standard= 125 grams (4.4 N)

Withdrawal Force: (Single contact only) (–S plating) Standard= 5 oz (1.39 N) avg ((0.64 mm) .025" SQ pin)

Low Insertion Force= 2.6 oz (0.72 N) avg

Max Cycles: 100 with 10µ" (0.25µm) Au

Voltage Rating: 550 VAC mated with TSW

RoHS Compliant

Lead–Free Solderable: -S and –D row option, Wave only -P, -T and -Q row option
