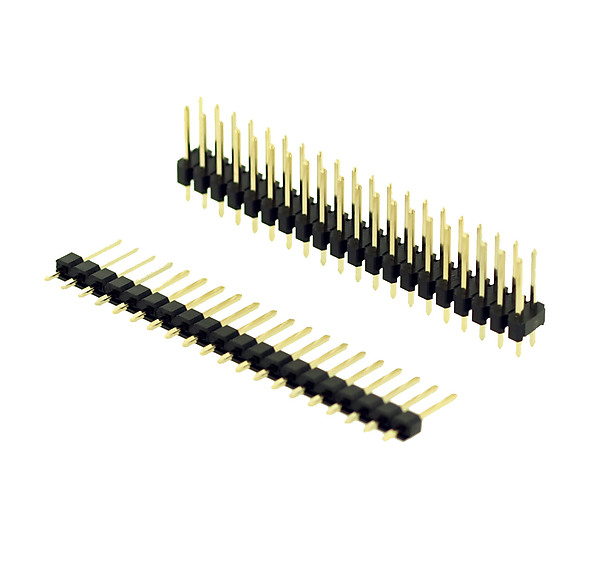

VMH - Valcon 2.54mm Pitch PCB Header 13.5mm Overall Pin Length - Fast Stock (VM135)

From: £0.012
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can modify and cut-to-size from 02 to 50 pins per row for Fast Stock delivery - Click here now!

  • Modified options available on request
  • 2.54mm pitch single and dual row through hole PCB footprint
  • 13.5mm overall pin length, 0.64mm square contact post
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
VMHD-2x03-135-080-030
130 in stock £0.074£0.062£0.049£0.043
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x04-135-080-030
100 in stock £0.099£0.08£0.062£0.056
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x05-135-080-030
104 in stock £0.118£0.099£0.08£0.068
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x06-135-080-030
Standard delivery
2 - 4 working days *
£0.148£0.13£0.111£0.074
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x08-135-080-030
50 in stock £0.186£0.16£0.123£0.104
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x09-135-080-030
40 in stock £0.21£0.179£0.142£0.118
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x10-135-080-030
Standard delivery
2 - 4 working days *
£0.247£0.222£0.186£0.123
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x12-135-080-030
30 in stock £0.284£0.234£0.186£0.16
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x20-135-060-050
20 in stock £0.37£0.333£0.284£0.222
When ordering more than in stock, please contact us to confirm delivery time.
VMHD-2x40-135-080-030
932 in stock £0.457£0.382£0.309£0.259
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x02-135-080-030
200 in stock £0.031£0.024£0.019£0.012
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x03-135-080-030
130 in stock £0.037£0.031£0.024£0.019
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x04-135-080-030
100 in stock £0.049£0.037£0.031£0.024
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x05-135-080-030
80 in stock £0.056£0.049£0.037£0.031
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x06-135-080-030
60 in stock £0.068£0.056£0.049£0.037
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x08-135-080-030
Standard delivery
2 - 4 working days *
£0.111£0.099£0.08£0.049
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x10-135-085-025
Standard delivery
15 - 17 working days *
£0.136£0.111£0.099£0.074
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x15-135-080-030
20 in stock £0.167£0.136£0.111£0.092
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x16-135-080-030
20 in stock £0.186£0.148£0.123£0.099
When ordering more than in stock, please contact us to confirm delivery time.
VMHS-1x40-135-080-030
644 in stock £0.297£0.247£0.198£0.167
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator:   Thermoplastic (UL 94V0)

Contact:    Full Gold Flash Plated Copper Alloy

Temperature Range: -40°C to +105°C

Contact Resistance: 20mΩ max.(initial).

Insulation Resistance: 1000MΩ min

Dielectric Withstanding Voltage: AC 500V Per Minute

RoHS Compliant - UL File No; E328028

Toby can cut-to-size your requirement from 1 pins to 40 pins per row, turning a zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

Valcon VMH customisable header series available from 7.5mm to 36.5mm overall pin lengths. Insulating body can be shifted to customise the contact pin length to bespoke requirements within 0.5mm increments. Bodies can be easily cut to required number of positions.
