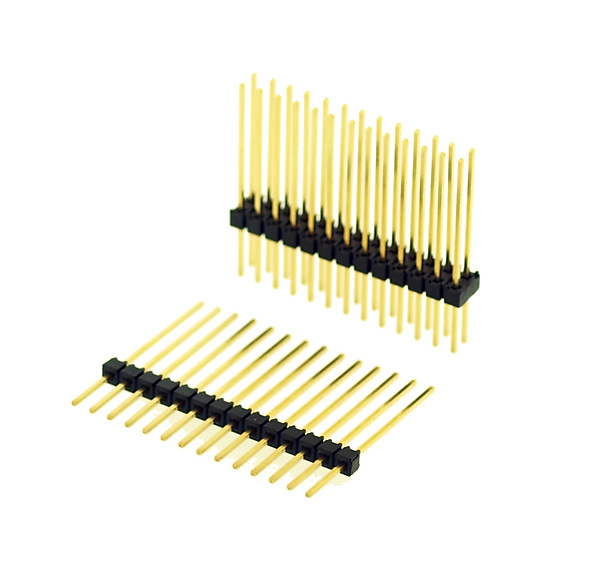

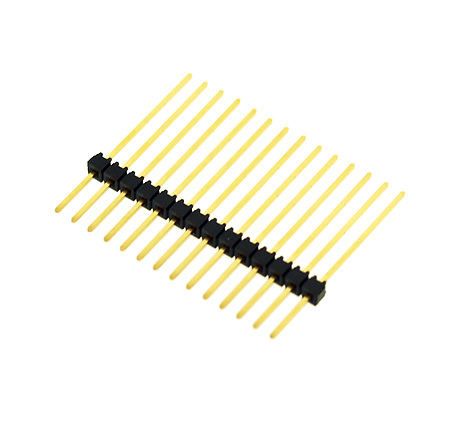

TSW - Samtec 2.54mm Pin Header, 28.7mm Overall Pin Length 18.03mm Tail (30) - Fast Stock (TSW30)

From: £0.115
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can cut-to-size from 02 to 50 pins per row for Fast Stock delivery - Click here now!

  • 2.54mm pitch single and dual row through hole PCB footprint
  • Standard 0.64mm square pins
  • Standard vertical PCB mounting, 2.54mm insulator profile
  • 28.7mm overall pin length, 8.13mm contact post, 18.03mm solder tail
Part No. Stock Qty Price Breaks Qty
TSW-107-30-G-S   3D CAD
1x7 positions
10 in stock 1+: £0.5150+: £0.50100+: £0.48 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black Glass Filled Polyester

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1.27µm) Ni

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

Voltage Rating: 550 VAC mated with SSW; 500 VAC mated with BCS or ESQ; 450 VAC -RA/-RE mated with BCS or SSM 400 VAC mated with CES

RoHS Compliant

Lead–Free Solderable: Lead Wave Only

Toby can cut-to-size your requirement from 2 pins to 48 pins per row, turning a zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

Samtec TSW series pin header terminals are industry standard PCB mount pin headers, suitable for mating with indistry standard PCB and cable mount sockets.
