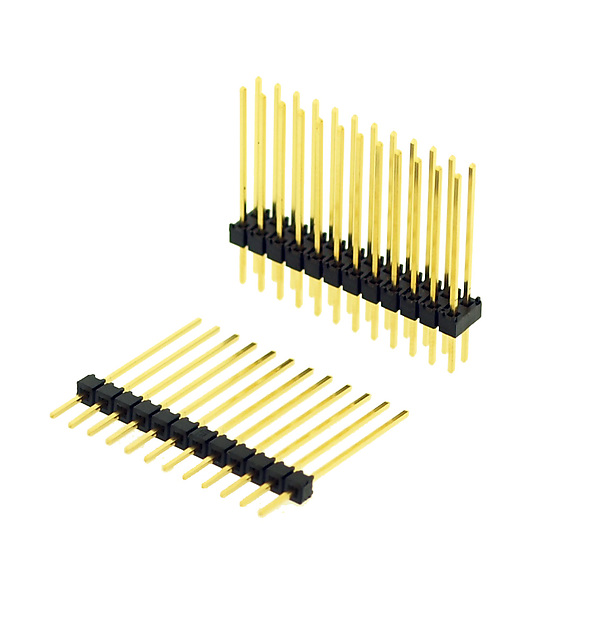

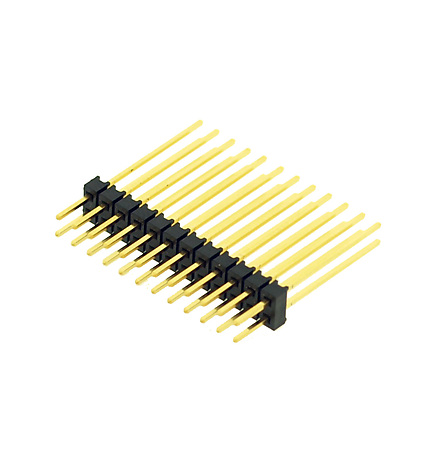

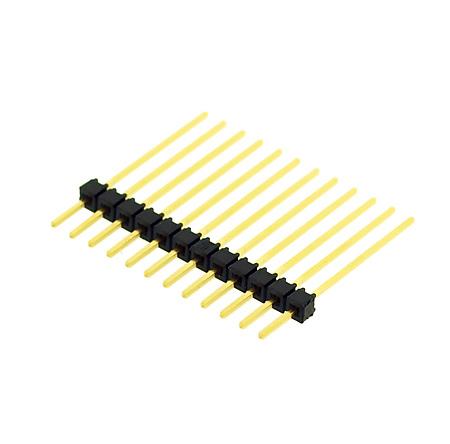

TSW - Samtec 2.54mm Pin Header, 26.16mm Overall Pin Length 17.78mm Tail (12) - Fast Stock (TSW12)

From: £0.058
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can cut-to-size from 02 to 50 pins per row for Fast Stock delivery - Click here now!

  • 2.54mm pitch single and dual row through hole PCB footprint
  • Standard 0.64mm square pins
  • Standard vertical PCB mounting, 2.54mm insulator profile
  • 26.16mm overall pin length, 5.84mm contact post, 17.78mm solder tail
Part No. Stock Qty Price Breaks Qty
TSW-107-12-T-S   3D CAD
1x7 positions
70 in stock 1+: £0.2750+: £0.27100+: £0.25 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-108-12-G-D   3D CAD
2x8 positions
5 in stock 1+: £1.1150+: £1.10100+: £1.04 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-110-12-T-S   3D CAD
1x10 positions
50 in stock 1+: £0.3850+: £0.37100+: £0.35 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-136-12-S-D   3D CAD
2x36 positions
2 in stock 1+: £6.5710+: £6.4825+: £6.13 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-150-12-T-S   3D CAD
1x50 positions
25 in stock 1+: £1.5250+: £1.49100+: £1.41 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black Glass Filled Polyester

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1.27µm) Ni

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

Voltage Rating: 550 VAC mated with SSW; 500 VAC mated with BCS or ESQ; 450 VAC -RA/-RE mated with BCS or SSM 400 VAC mated with CES

RoHS Compliant

Lead–Free Solderable: Lead Wave Only

Toby can cut-to-size your requirement from 2 pins to 50 pins per row, turning a zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

This through-hole .025” square post terminal strip features single, double and triple row options with straight or right-angle pins in a variety of post heights and body positions. This connector is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500).
