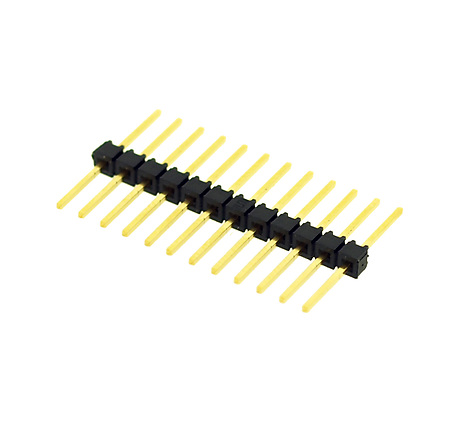

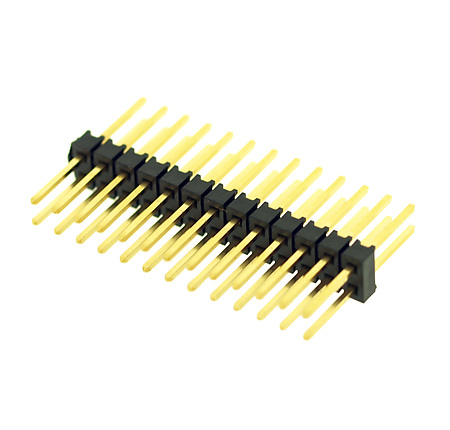

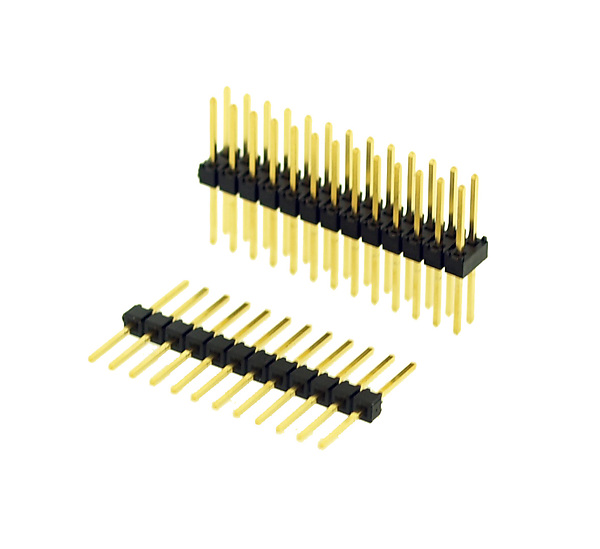

TSW - Samtec 2.54mm Pin Header, 18.54mm Overall Pin Length 7.87mm Tail (16) - Fast Stock (TSW16)

From: £0.104
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can cut-to-size from 02 to 50 pins per row for Fast Stock delivery - Click here now!

  • 2.54mm pitch single and dual row through hole PCB footprint
  • Standard 0.64mm square pins
  • Standard vertical PCB mounting, 2.54mm insulator profile
  • 18.54mm overall pin length, 8.13mm contact post, 7.87mm solder tail
Part No. Stock Qty Price Breaks Qty
TSW-104-16-G-D   3D CAD
2x4 positions
15 in stock 1+: £0.4850+: £0.47100+: £0.45 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-106-16-G-D   3D CAD
2x6 positions
10 in stock 1+: £0.7150+: £0.70100+: £0.66 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-110-16-T-D   3D CAD
Standard delivery
2 - 4 working days *
1+: £0.6550+: £0.64100+: £0.60 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-111-16-G-D   3D CAD
2x11 positions
5 in stock 1+: £1.3150+: £1.29100+: £1.22 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-111-16-L-S   3D CAD
1x11 positions
10 in stock 1+: £0.5450+: £0.53100+: £0.50 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-114-16-G-S   3D CAD
1x14 positions
10 in stock 1+: £0.8350+: £0.81100+: £0.77 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-124-16-G-S   3D CAD
1x24 positions
Standard delivery
2 - 4 working days *
1+: £1.4350+: £1.41100+: £1.33 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-136-16-G-D   3D CAD
2x36 positions
5 in stock 1+: £4.2610+: £4.2025+: £3.98 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-150-16-T-D   3D CAD
2x50 positions
11 in stock 1+: £2.5525+: £2.5250+: £2.38 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-150-16-T-S   3D CAD
1x50 positions
2 in stock 1+: £1.2950+: £1.27100+: £1.20 View all prices
You have ordered more than we have in stock, Standard delivery 2 - 4 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black Glass Filled Polyester

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1.27µm) Ni

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

Voltage Rating: 550 VAC mated with SSW; 500 VAC mated with BCS or ESQ; 450 VAC -RA/-RE mated with BCS or SSM 400 VAC mated with CES

RoHS Compliant

Lead–Free Solderable: Lead Wave Only

Toby can cut-to-size your requirement from 2 pins to 48 pins per row, turning a zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

This through-hole .025” square post terminal strip features single, double and triple row options with straight or right-angle pins in a variety of post heights and body positions. This connector is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500).
