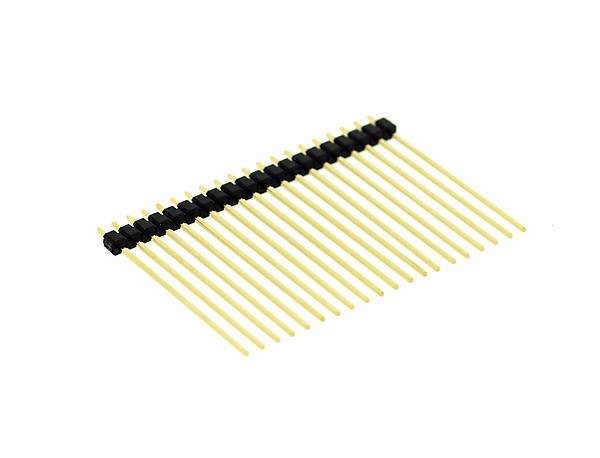

FTHx - Valcon 2.54mm Variable Post Height Header, 36.5mm Overall Pin Length (TH365)

From: £0.41
Copied to clipboard
  • 2.54mm pitch single and dual row through hole PCB footprint
  • 36.5mm overall pin length, 0.64mm square contact post
  • Modified contact post and solder tails in 0.5mm increments
  • No. of contacts 01 to 40 pins per row
  • Modify and cut to size options available - MOQ's may apply
  • Click here for low cost alternative
Part No. Stock Qty 10+ 100+ 1000+ Qty
FTHS-06R-365-310-030
1x6 positions
60 in stock £0.74£0.62£0.41
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
FTHS-40R-365-295-045
1x40 positions
149 in stock £3.31£2.77£2.29
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
FTHS-40R-365-310-030
1x40 positions
202 in stock £3.77£3.31£2.73
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Material: Brass

Contact Plating: Gold Flash Plated (R) Body: PBT UL94V-0 Rated Black

Rated Current: 3A

DWV  AC500V

Insulation Resistance: 5000 MΩ Max.

Operating Temperature: -40°C to +105°C

RoHS compliant
