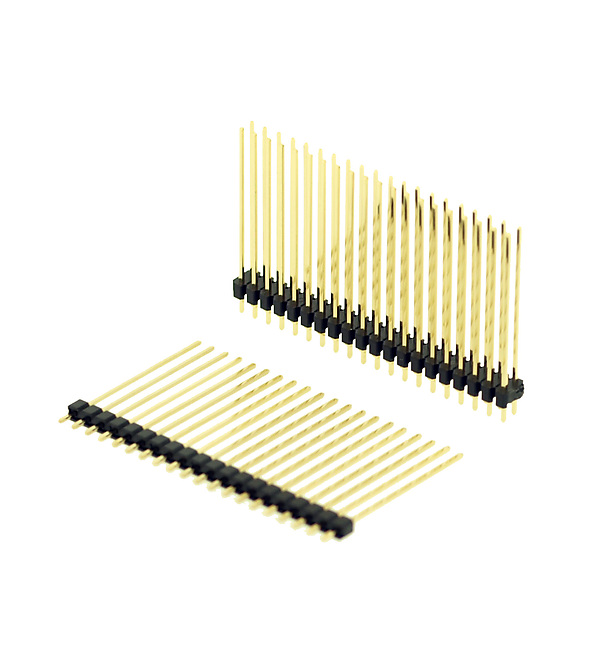

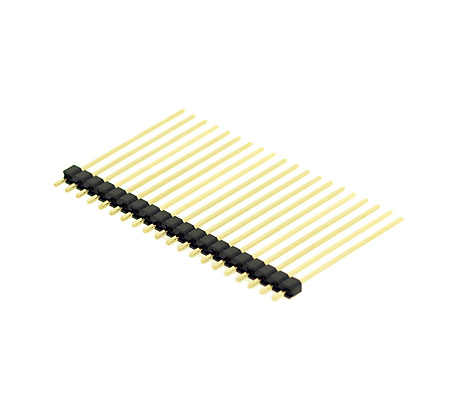

FTHx - Valcon 2.54mm Variable Post Height Header, 31.5mm Overall Pin Length (TH315)

From: £0.12
Copied to clipboard
  • 2.54mm pitch single and dual row through hole PCB footprint
  • 31.5mm overall pin length, 0.64mm square contact post
  • Modified contact post and solder tails in 0.5mm increments
  • No. of contacts 01 to 40 pins per row
  • Modify and cut to size options available - MOQ's may apply
  • Click here for low cost alternative
Part No. Stock Qty 10+ 100+ 1000+ Qty
FTHD-02R-315-245-045
2x2 positions
Standard delivery
15 - 17 working days *
£0.43£0.36£0.23
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
FTHD-06R-315-260-030
2x6 positions
60 in stock £1.29£1.07£0.71
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
FTHD-40R-315-260-030
2x40 positions
49 in stock £5.68£5.16£4.37
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
FTHS-02R-315-260-030
1x2 positions
398 in stock £0.21£0.19£0.12
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
FTHS-40R-315-260-030
1x40 positions
218 in stock £2.84£2.58£2.19
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Material: Brass

Contact Plating: Gold Flash Plated (R) Body: PBT UL94V-0 Rated Black

Rated Current: 3A

DWV  AC500V

Insulation Resistance: 5000 MΩ Max.

Operating Temperature: -40°C to +105°C

RoHS compliant
