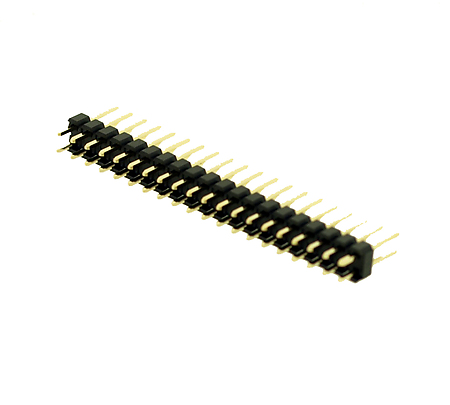

FTHx - Valcon 2.54mm Variable Post Height Header, 12.5mm Overall Pin Length (TH125)

From: £0.035
Copied to clipboard
  • 2.54mm pitch single and dual row through hole PCB footprint
  • 12.5mm overall pin length, 0.64mm square contact post
  • Modified contact post and solder tails in 0.5mm increments
  • No. of contacts 01 to 40 pins per row
  • Modify and cut to size options available - MOQ's may apply
  • Contact sales@toby.co.uk with your requirement
  • Click her for low cost alternative
Part No. Stock Qty 1+ 100+ 1000+ Qty
FTHD-02R-125-060-040
2x2 positions
Standard delivery
15 - 17 working days *
£0.07£0.05£0.035
Standard delivery 15 - 17 working days
FTHD-02R-125-070-030
2x2 positions
Standard delivery
3 - 5 working days *
Contact UsContact UsContact Us
Standard delivery 3 - 5 working days
FTHD-03R-125-070-030
2x3 positions
Standard delivery
15 - 17 working days *
Contact UsContact UsContact Us
Standard delivery 15 - 17 working days
FTHD-04R-125-070-030
2x4 positions
Standard delivery
15 - 17 working days *
£0.12£0.10£0.07
Standard delivery 15 - 17 working days
FTHD-05R-125-065-035
2x5 positions
Standard delivery
15 - 17 working days *
£0.20£0.18£0.11
Standard delivery 15 - 17 working days
FTHD-05R-125-070-030
2x5 positions
46 in stock £0.16£0.13£0.09
Standard delivery 15 - 17 working days
FTHD-07R-125-070-030
2x7 positions
25 in stock £0.22£0.19£0.13
Standard delivery 15 - 17 working days
FTHD-08R-125-070-030
2x8 positions
Standard delivery
15 - 17 working days *
£0.25£0.21£0.14
Standard delivery 15 - 17 working days
FTHD-09R-125-070-030
2x9 positions
Standard delivery
15 - 17 working days *
£0.36£0.30£0.20
Standard delivery 15 - 17 working days
FTHD-10R-125-050-050
2x10 positions
Standard delivery
15 - 17 working days *
£0.32£0.26£0.18
Standard delivery 15 - 17 working days
FTHD-10R-125-070-030
2x10 positions
40 in stock £0.32£0.26£0.18
Standard delivery 15 - 17 working days
FTHD-23R-125-070-030
2x23 positions
40 in stock £0.79£0.66£0.44
Standard delivery 15 - 17 working days
FTHD-40R-125-070-030
2x40 positions
376 in stock £0.86£0.76£0.64
Standard delivery 15 - 17 working days

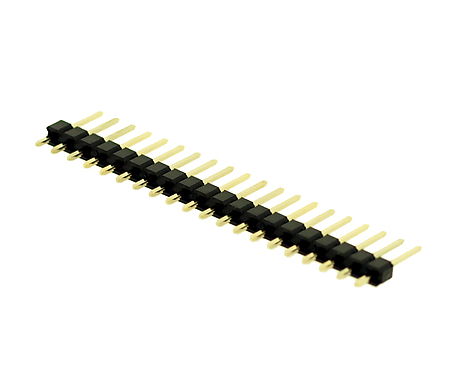

FTHS-18R-125-070-030
1x18 positions
Standard delivery
15 - 17 working days *
£0.29£0.24£0.16
Standard delivery 15 - 17 working days
FTHS-40R-125-070-030
1x40 positions
85 in stock £0.63£0.53£0.35
Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Material: Brass

Contact Plating: Gold Flash Plated (R) Body: PBT UL94V-0 Rated Black

Rated Current: 3A

DWV  AC500V

Insulation Resistance: 5000 MΩ Max.

Operating Temperature: -40°C to +105°C

RoHS compliant
