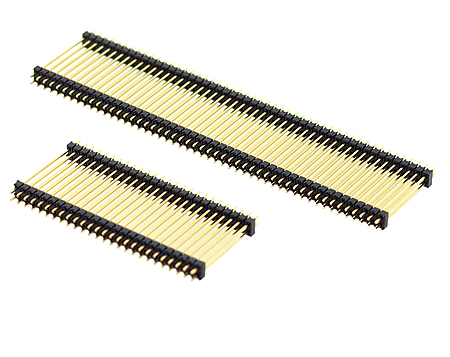

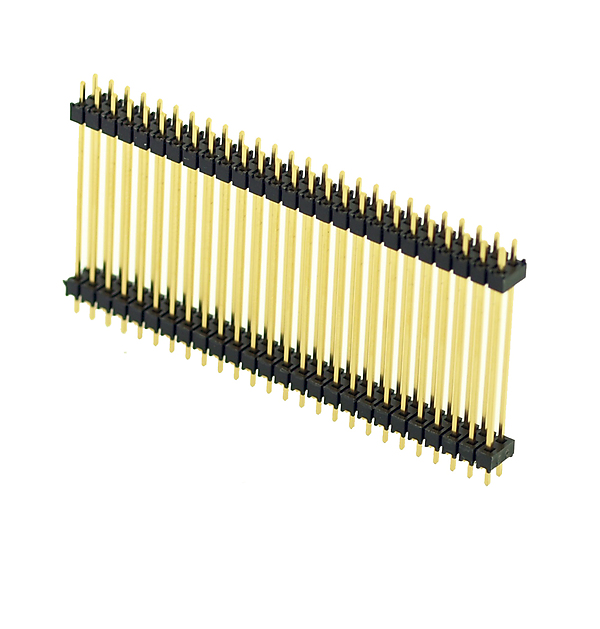

DW - Samtec 2.54mm Board Stacker 33.78mm Overall Pin Length (19) Fast Stock (DW19)

From: £0.141
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can cut-to-size from 02 to 50 pins per row for Fast Stock delivery - Click here now!

  • Vertical through-hole, 2.54mm pitch, 0.635mm square post
  • Flex Stack design allows modified post height and body position in 0.13mm increments
  • For elevated board stacking application
Part No. Stock Qty Price Breaks Qty
DW-02-19-T-D-1127   3D CAD
Standard delivery
7 - 9 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-04-19-L-D-1025   3D CAD
2x4 positions
Standard delivery
3 - 5 working days *
1+: £0.8250+: £0.80100+: £0.76 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-05-19-G-D-905   3D CAD
2x5 positions
Standard delivery
2 - 4 working days *
1+: £1.2550+: £1.21100+: £1.15 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-06-19-G-S-1000   3D CAD
1x6 positions
200 in stock 1+: £0.7450+: £0.72100+: £0.68 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-06-19-T-S-1020   3D CAD
1x6 positions
Standard delivery
3 - 5 working days *
1+: £0.4050+: £0.39100+: £0.37 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-08-19-G-S-1040   3D CAD
1x8 positions
Standard delivery
3 - 5 working days *
1+: £0.9950+: £0.97100+: £0.92 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-15-19-L-S-760   3D CAD
1x15 positions
Standard delivery
3 - 5 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-23-19-G-D-972   3D CAD
2x23 positions
Standard delivery
3 - 5 working days *
1+: £5.7110+: £5.5625+: £5.26 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: DW, EW, ZW: Black Glass Filled Polyester HW: Natural Liquid Crystal Polymer

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1.27µm) Ni

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

RoHS Compliant: Yes

Lead–Free Solderable: DW, EW, ZW: No, Lead Wave Only HW: Yes

Toby can cut-to-size your requirement from 2 pins to 48 pins per row, turning a zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

Samtec elevated board stacking applications with 0.635mm square post contacts. Flex Stack design allows modified post height and body position in 0.13 mm increments.
