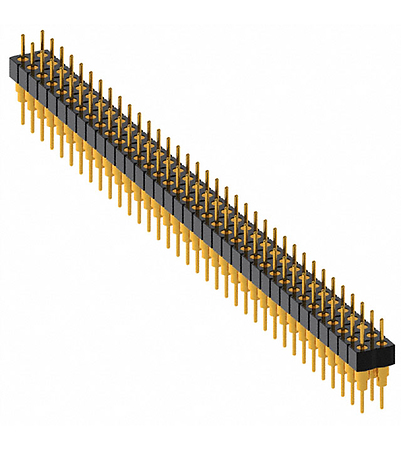

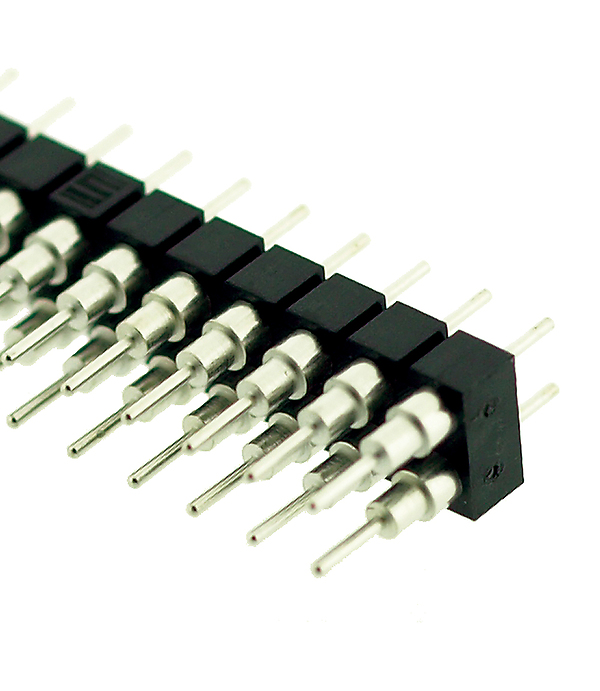

BBD - 2.54 mm Double Row, Screw Machine Terminal Strip / Header
Samtec

BBD - Samtec 2.54mm Double Row, Screw Machine Terminal Strip / Header (BBD)

From: £0.285
  • 2.54mm pitch through hole PCB footprint
  • Three body height options: 5.33mm, 8.51mm and 14.86mm
  • No. of contacts 01 to 36 pins per row
Part No. Stock Qty 1+ 100+ 500+ 12500+ 25000+ 125000+ Qty
BBD-102-G-A  3D CAD
2x2 Positions
8 in stock £0.62£0.62£0.62Contact UsContact UsContact Us
BBD-102-T-B  3D CAD
2x2 Positions
Standard delivery
2 - 4 working days *
£0.285£0.285£0.285Contact UsContact UsContact Us
BBD-103-G-A  3D CAD
2x3 Positions
10 in stock £0.935£0.93£0.92Contact UsContact UsContact Us
BBD-103-G-C  3D CAD
2x3 Positions
Standard delivery
3 - 5 working days *
£1.24£1.24£1.24Contact UsContact UsContact Us
BBD-103-T-B  3D CAD
2x2 Positions
Standard delivery
2 - 4 working days *
£0.43£0.43£0.43Contact UsContact UsContact Us
BBD-104-G-B  3D CAD
2x4 Positions
Standard delivery
2 - 4 working days *
£1.40£1.40£1.40Contact UsContact UsContact Us
BBD-105-G-G  3D CAD
2x5 Positions
Standard delivery
4 - 6 working days *
£2.73£2.72£2.72Contact UsContact UsContact Us
BBD-106-G-B  3D CAD
2x6 Positions
Standard delivery
2 - 4 working days *
£2.10£2.10£2.09Contact UsContact UsContact Us
BBD-108-G-A  3D CAD
2x8 Positions
4 in stock £2.49£2.485£2.48Contact UsContact UsContact Us
BBD-108-G-C  3D CAD
2x8 Positions
Standard delivery
2 - 4 working days *
£3.32£3.31£3.30Contact UsContact UsContact Us
BBD-108-G-G  3D CAD
2x8 Positions
Standard delivery
2 - 4 working days *
£4.36£4.35£4.34Contact UsContact UsContact Us
BBD-110-G-B  3D CAD
2x10 Positions
Standard delivery
2 - 4 working days *
£3.51£3.50£3.49Contact UsContact UsContact Us
BBD-110-T-C  3D CAD
2x10 Positions
Standard delivery
2 - 4 working days *
£1.70£1.69£1.68Contact UsContact UsContact Us
BBD-113-GA  3D CAD
2x13 Positions
5 in stock £4.05£4.04£4.03Contact UsContact UsContact Us
BBD-121-G-B  3D CAD
2x21 Positions
Standard delivery
2 - 4 working days *
£7.36£7.35£7.33Contact UsContact UsContact Us
BBD-124-G-A  3D CAD
2x24 Positions
20 in stock £7.48£7.47£7.45Contact UsContact UsContact Us
BBD-136-G-A  3D CAD
2x36 Positions
Standard delivery
3 - 5 working days *
£10.08£10.06£8.69Contact UsContact UsContact Us
BBD-136-G-B  3D CAD
2x36 Positions
Standard delivery
3 - 5 working days *
£11.35£11.33£9.78Contact UsContact UsContact Us
BBD-136-G-C  3D CAD
2x36 Positions
Standard delivery
3 - 5 working days *
£13.45£13.43£11.59Contact UsContact UsContact Us
BBD-136-G-G  3D CAD
2x36 Positions
Standard delivery
3 - 5 working days *
£17.67£17.65£15.21Contact UsContact UsContact Us
BBD-136-T-A  3D CAD
2x36 Positions
3 in stock £4.15£4.14£3.54Contact UsContact UsContact Us
BBD-136-T-B  3D CAD
2x36 Positions
Standard delivery
3 - 5 working days *
£4.64£4.63£4.00Contact UsContact UsContact Us
BBD-136-T-C  3D CAD
2x36 Positions
17 in stock £5.52£5.50£4.73Contact UsContact UsContact Us
BHS-102-G-G  3D CAD
2x2 Positions
Standard delivery
4 - 6 working days *
£0.60Contact UsContact Us£0.515£0.51£0.375

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black Glass Filled Polyester

Temperature Range: -55 °C to +125 °C

Terminal Material: Phosphor Bronze or Brass

Plating: Au or Sn over 50µ" (1.27µm) Ni

RoHS Compliant

Lead-Free Solderable: Wave only

Low-profile design achieves 3.89mm board spacings when mated with Samtec's SL Series. Approaches the reliability of a permanent connection with the flexibility of a separable connection.
