CLT-03

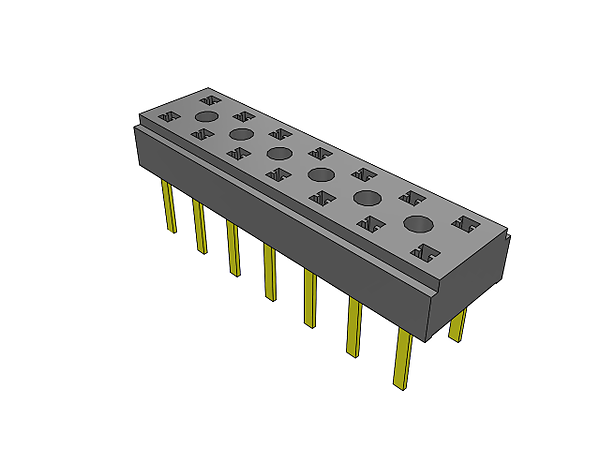

CLT - Samtec 2mm Rugged Low Profile Through Hole Dual Wipe Socket, 2.13mm Profile (03) (CLT03)

From: £0.309
Copied to clipboard
  • 2mm pitch dual row through hole PCB footprint
  • Samtec Tiger Claw™ contact system
  • Low 2.13mm PCB profile
  • 03 lead style 2.95 mm
  • No. of contacts 02 to 50 pins per row
  • Top entry pass-through
Part No. Stock Qty Price Breaks Qty
CLT-105-03-L-D   3D CAD
Standard delivery
10 - 12 working days *
1+: £1.7650+: £1.70100+: £1.47 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
CLT-108-03-F-D   3D CAD
2x8 positions
Standard delivery
6 - 8 working days *
1+: £1.8350+: £1.76100+: £1.53 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
CLT-108-03-L-D   3D CAD
2x8 positions
Standard delivery
6 - 8 working days *
1+: £2.2950+: £2.20100+: £1.91 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
CLT-112-03-L-D   3D CAD
2x12 positions
Standard delivery
6 - 8 working days *
1+: £3.2625+: £3.1450+: £2.72 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
CLT-116-03-F-D   3D CAD
2x16 positions
Standard delivery
6 - 8 working days *
1+: £3.4925+: £3.3550+: £2.91 View all prices
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black Liquid Crystal Polymer

Contact Material: Phosphor Bronze

Plating: Sn or Au over 50µ" (1,27µm) Ni

Current Rating (TMMH/CLT): 4.1A per pin (1 pin powered per row)

Operating Temp Range: -55°C to +125°C

Contact Resistance: 10mΩ

Insertion Depth: Top Entry= (1,40 mm) .055" minimum Bottom Entry= (2,57 mm) .101" minimum (add board thickness for correct post OAL)

Insertion Force: (Single contact only) 1.8 oz (0,50 N) avg.

Withdrawal Force: (Single contact only) .6 oz (0,17 N) avg.

Max Cycles: 100 with 10µ" (0,25µm) Au

RoHS Compliant

Lead–Free Solderable

This is Samtec's 2mm pitch dual row surface mount and through hole PCB connector series; Low 2.13mm PCB profile, available in 02 to 50 contact pins per row and in top, bottom entry pass-through options
