CLT-01

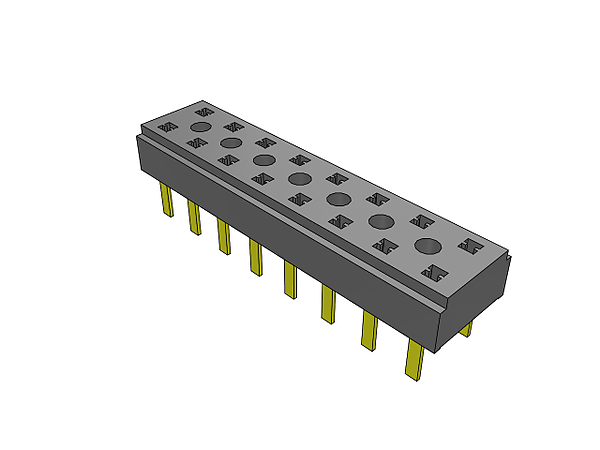

CLT - Samtec 2mm Rugged Low Profile Through Hole Dual Wipe Socket, 2.13mm Profile (01) (CLT01)

From: £0.188
Copied to clipboard
  • 2mm pitch dual row through hole PCB footprint
  • Samtec Tiger Claw™ contact system
  • Low 2.13mm PCB profile
  • 01 lead style 2.16mm
  • No. of contacts 02 to 50 pins per row
  • Top entry pass-through
Data sheet Technical Specification Related Products Product Configurator
Part No. Stock Qty Price Breaks Qty
CLT-102-01-F-D   3D CAD
2x2 positions 		Standard delivery
17 - 19 working days * 		1+: £0.5550+: £0.53100+: £0.51 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-103-01-G-D   3D CAD
2x3 positions 		Standard delivery
10 - 12 working days * 		1+: £1.0550+: £1.02100+: £0.97 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-103-01-L-D   3D CAD
Standard delivery
6 - 8 working days * 		1+: £0.9350+: £0.90100+: £0.85 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-105-01-F-D   3D CAD
2x5 positions 		Standard delivery
6 - 8 working days * 		1+: £0.8950+: £0.87100+: £0.82 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-105-01-L-D   3D CAD
2x5 positions 		Standard delivery
6 - 8 working days * 		1+: £1.1250+: £1.09100+: £1.03 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-106-01-F-D   3D CAD
2x6 positions 		Standard delivery
6 - 8 working days * 		1+: £0.9850+: £0.96100+: £0.91 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-107-01-F-D   3D CAD
Standard delivery
10 - 12 working days * 		1+: £1.0550+: £1.02100+: £0.97 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-107-01-L-D   3D CAD
2x7 positions 		Standard delivery
6 - 8 working days * 		1+: £1.3350+: £1.29100+: £1.22 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-108-01-F-D   3D CAD
Standard delivery
10 - 12 working days * 		1+: £1.1550+: £1.12100+: £1.06 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-109-01-F-D   3D CAD
Standard delivery
10 - 12 working days * 		1+: £1.2950+: £1.26100+: £1.19 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-109-01-S-D   3D CAD
2x9 positions 		Standard delivery
10 - 12 working days * 		1+: £2.4225+: £2.3650+: £2.23 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-110-01-F-D   3D CAD
2x10 positions 		Standard delivery
6 - 8 working days * 		1+: £1.3750+: £1.33100+: £1.26 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-110-01-G-D   3D CAD
2x10 positions 		Standard delivery
6 - 8 working days * 		1+: £1.9525+: £1.9050+: £1.80 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-110-01-L-D   3D CAD
2x10 positions 		Standard delivery
6 - 8 working days * 		1+: £1.7150+: £1.67100+: £1.58 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-111-01-S-D   3D CAD
2x11 positions 		Standard delivery
10 - 12 working days * 		1+: £3.7125+: £3.6150+: £3.42 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-112-01-F-D   3D CAD
Standard delivery
10 - 12 working days * 		1+: £1.6550+: £1.60100+: £1.52 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-113-01-F-D   3D CAD
Standard delivery
10 - 12 working days * 		1+: £1.7850+: £1.73100+: £1.64 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-115-01-F-D   3D CAD
2x15 positions 		Standard delivery
6 - 8 working days * 		1+: £2.0625+: £2.0050+: £1.89 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-115-01-G-D   3D CAD
2x13 positions 		Standard delivery
6 - 8 working days * 		1+: £2.9325+: £2.8450+: £2.69 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-115-01-L-D   3D CAD
2x15 positions 		Standard delivery
6 - 8 working days * 		1+: £2.5725+: £2.5050+: £2.37 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-116-01-F-D   3D CAD
Standard delivery
10 - 12 working days * 		1+: £2.1925+: £2.1350+: £2.02 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-120-01-L-D   3D CAD
2x20 positions 		Standard delivery
6 - 8 working days * 		1+: £3.4325+: £3.3350+: £3.16 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-122-01-S-D   3D CAD
2x22 positions 		Standard delivery
10 - 12 working days * 		1+: £5.6610+: £5.5025+: £5.21 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-124-01-S-D   3D CAD
2x24 positions 		Standard delivery
10 - 12 working days * 		1+: £6.1710+: £6.0025+: £5.68 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-130-01-F-D   3D CAD
2x30 positions 		Standard delivery
6 - 8 working days * 		1+: £4.1110+: £4.0025+: £3.79 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
CLT-142-01-G-D   3D CAD
Standard delivery
7 - 9 working days * 		1+: £8.1910+: £7.9725+: £7.55 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black Liquid Crystal Polymer

Contact Material: Phosphor Bronze

Plating: Sn or Au over 50µ" (1,27µm) Ni

Current Rating (TMMH/CLT): 4.1A per pin (1 pin powered per row)

Operating Temp Range: -55°C to +125°C

Contact Resistance: 10mΩ

Insertion Depth: Top Entry= (1,40 mm) .055" minimum Bottom Entry= (2,57 mm) .101" minimum (add board thickness for correct post OAL)

Insertion Force: (Single contact only) 1.8 oz (0,50 N) avg.

Withdrawal Force: (Single contact only) .6 oz (0,17 N) avg.

Max Cycles: 100 with 10µ" (0,25µm) Au

RoHS Compliant

Lead–Free Solderable

This is Samtec's 2mm pitch dual row surface mount and through hole PCB connector series; Low 2.13mm PCB profile, available in 02 to 50 contact pins per row and in top, bottom entry pass-through options
