B37

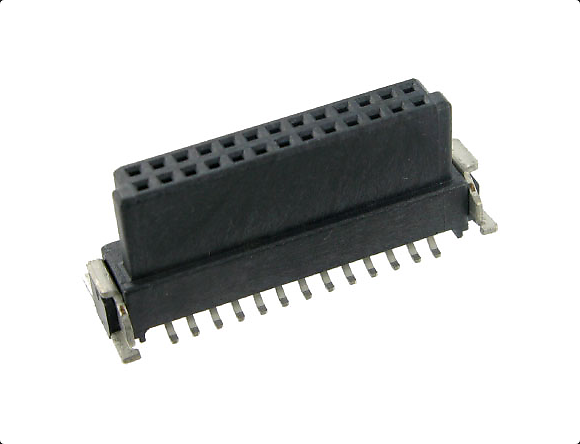

B37 - Valcon 1.27mm Surface Mount Socket (B37)

From: £2.57
Copied to clipboard
  • 1.27mm pitch SMT footprint
  • 9mm PCB profile
  • Mating Suggestion : C56, C57, C57a & C58 series
Part No. Stock Qty 492+ 1008+ Qty
B37-68-BSA1G
MOQ 492
Standard delivery
20 - 22 working days *
£3.08£2.57
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Material

Insulator : LCP, glass reinforced, rated UL 94V-0 Contact : Phosphor Bronze



Electrical

Current Rating : 1 Amp

Contact Resistance : 30 mΩ max.

Insulation Resistance : 1000 MΩ min.

Dielectric Withstanding Voltage : 250V AC for 1minute Operating Temperature : -40˚C to +105˚
