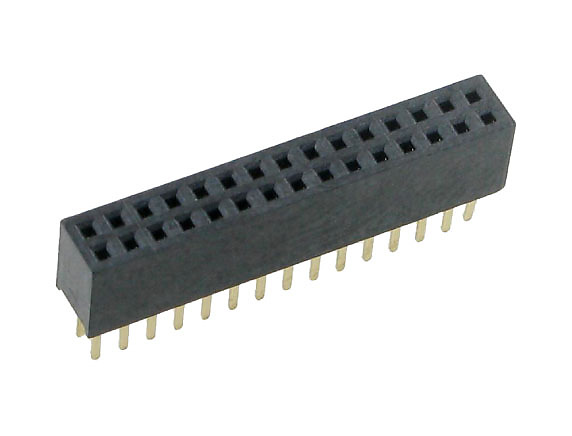

B28d - Valcon 1.27mm Straight Socket Strip (B28D)

From: £0.38
  • 1.27mm pitch through hole PCB socket
  • Single or dual row options
  • Two PCB profile options 3.4mm or 4.3mm
  • Two solder tail length options 1.5mm or 2.6mm
  • No. of contacts: Single 02 to 50 pins: Dual 04 to 100 pins
  • Gold flash plated contacts as standard
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
B28d-1x12-BGBB1-G
1x12 Positions - 38 per pack
Standard delivery
15 - 17 working days *
£0.90£0.75£0.60£0.50
B28D-1x14-BGBB1-G
Standard delivery
15 - 17 working days *
£0.70£0.70£0.70£0.58
B28d-1x7-BGBB1-G
1x7 Positions - 64 per pack
Standard delivery
15 - 17 working days *
£0.69£0.58£0.46£0.38
B28d-2x25-BGBA1-G
2x25 Positions
382 in stock £2.01£1.68£1.34£1.12

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator : LCP, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze

Current Rating : 0.5 Amp

Contact Resistance : 30 mΩ max.

Insulation Resistance : 1000 MΩ min.

Dielectric Withstanding Voltage : 250V AC for 1minute

Operating Temperature : -40°C to +105°C

RoHS Compliant
