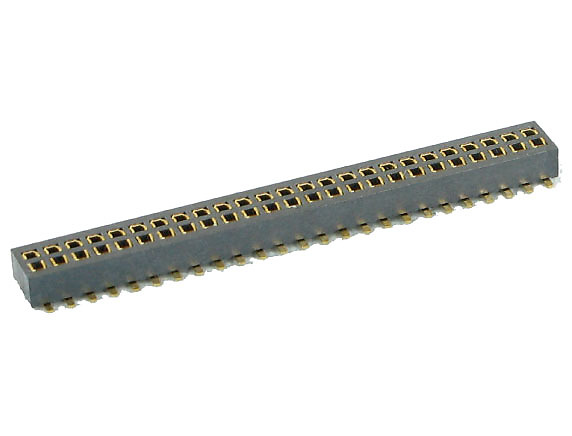

B28b - Valcon 1.27mm Surface Mount Socket Strip, 2.2mm Profile (B28B)

From: £0.56
  • 1.27mm pitch dual row surface mount PCB footprint
  • Low 2.2mm PCB Profile
  • Gold flash plated contacts as standard
  • No. of contacts 04 to 60 pin (2x30 = 60 pin)
  • With or without locating pegs
  • Pick and place pad and tape and reel packaging available
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
B28b-2x11-BGBB1-G
2x11 Positions - MOQ 500
Standard delivery
15 - 17 working days *
£0.89£0.89£0.89£0.74
B28b-2x25-BGBB1-G
2x25 Positions
70 in stock £2.29£1.92£1.53£1.28
B28b-2x5-BGAB1-G
2x5 Positions - 89 per pack
902 in stock £1.00£0.84£0.67£0.56
B28b-2x5-BGBB1-G
2x5 Positions
100 in stock £1.00£0.84£0.67£0.56
B28b-2x7-BGBB1-G
2x7 Positions
95 in stock £1.04£0.86£0.69£0.57

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator : LCP, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze

Current Rating : 0.5 Amp

Contact Resistance : 30 mΩ max.

Insulation Resistance : 1000 MΩ min.

Dielectric Withstanding Voltage : 250V AC for 1minute

Operating Temperature : -40°C to +105°C

RoHS compliant
