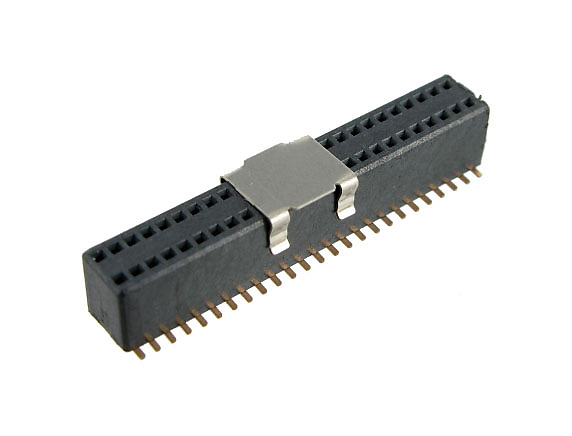

B15a - Valcon 1.27mm x 2.54mm Surface Mount Dual Row Socket Strip, 5.8mm Profile (B15A)

From: £0.58
  • 1.27mm x 2.54mm PCB footprint
  • 5.8mm PCB profile
  • Selective gold plated contact as standard
  • Available with or without locating peg
  • Pick and place pad and tape and reel packaging
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
B15a-2x10-BSBB1-G
10 in stock £1.26£1.05£0.84£0.70
B15A-2x20-BSBA1-G
Standard delivery
15 - 17 working days *
£2.07£1.73£1.38£1.15
B15a-2x20-BSBB1-G
80 in stock £1.95£1.63£1.30£1.09
B15a-2x5-BSBB1-G
50 in stock £1.04£0.86£0.69£0.58
B15A-2x7-BSBA1-G
64 per pack
652 in stock £1.15£0.96£0.77£0.64
B15A-2x7-BSBB1-G
10 in stock £1.06£0.89£0.71£0.59

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator : LCP, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze

Current Rating : 1 Amp

Contact Resistance : 30 mΩ max.

Insulation Resistance : 1000 MΩ min.

Dielectric Withstanding Voltage : 250V AC for 1minute

Operating Temperature : -40°C to +105°C

RoHS compliant
