2350 0x T06CB A - Lutronic Quicklock IP67 Field-Attachable Connectors

2350 0x T06CB A - Lutronic Quicklock IP67 Field-Attachable Connectors (2350)

From: £4.14

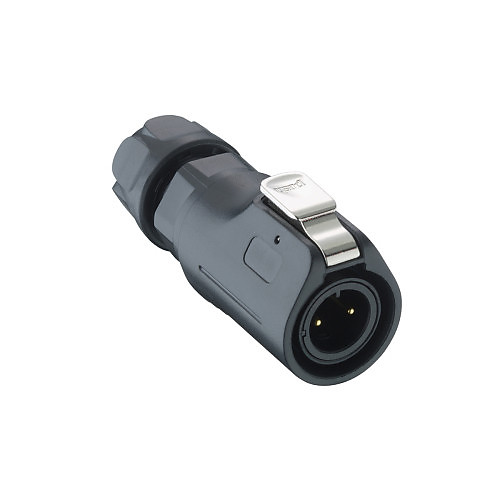

Quicklock plug with locking latch
IP67, size 12, straight version
2 ~ 8 Poles available
Plastic housing and solder terminals
Mates with: 2340 xx T06CB A - Lutronic Quicklock IP67 Field-Attachable Connectors
ULus, CE Approved

Part No.	Stock Qty	60+	120+	360+	Qty
2350 02 T06CB T 2 Pole	Standard delivery 10 - 12 working days *	£4.73	£4.41	£4.14	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2350 03 T06CB T 3 Pole	Standard delivery 10 - 12 working days *	£4.97	£4.64	£4.35	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2350 04 T06CB T 4 Pole	Standard delivery 10 - 12 working days *	£5.04	£4.70	£4.41	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2350 05 T06CB T 5 Pole	Standard delivery 10 - 12 working days *	£5.42	£5.06	£4.75	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2350 06 T06CB T 6 Pole	Standard delivery 10 - 12 working days *	£5.77	£5.38	£5.05	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2350 07 T06CB T 7 Pole	Standard delivery 10 - 12 working days *	£5.94	£5.54	£5.20	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2350 08 T06CB T 8 Pole	Standard delivery 10 - 12 working days *	£6.10	£5.69	£5.33	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Environmental conditions

Temperature range: -40 °C/+80 °C

Materials

Insulating body: PBT, V-0 according to UL94

Contact pin: CuZn, gold-plated

Housing: PBT, V-0 according to UL94 *1

Locking: Zn-alloy, chrome-plated

Cap nut: PBT, V-0 according to UL94 *2

1) outdoor sustainable (F1 according to UL 746C)

2) outdoor sustainable (F1 according to UL 746C)

Mechanical data

Protection class: IP67 *1

only in locked condition with an appropriate counterpart

Connectable conductors for solder area

Section: 0.34–0.75 mm²/AWG 22–20 (2–6 poles)

0.25–0.34 mm²/AWG 24–22 (7–8 poles)

Cable diameter: 4.0–5.5 mm (state of delivery)

3.0–4.5 mm (with accessory 9923 SL4,5)

5.0–6.0 mm (with accessory 9923 SL6)

Electrical data (at Tamb 20 °C)

Rated current: 5 A (2–6 poles) 3 A (7–8 poles)

Rated voltage: 125 V AC/DC (2–6 poles) 100 V AC/DC (7–8 poles)

Rated impulse voltage: 1500 V AC (2–6 poles) 1000 V AC (7–8 poles)

Lutonic GmbH, sister company to Lumberg GmbH manufacure these IP67 rated circular power connectors with Quicklock mechanism, available in 2–12 poles in four design sizes. For signal and load currents up to 50 A.
