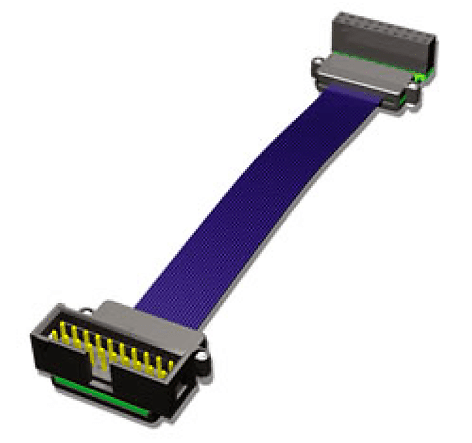

HHSC Samtec 2.54mm JTAG Ribbon Coax Cable Assembly

HHSC Samtec 2.54mm JTAG Ribbon Coax Cable Assembly (HHSC)

Double row design up to 50 contacts
Header or socket termination
JTAG (IEEE 1149.1) compatible
.100" (2.54 mm) pitch

Part No.	Stock Qty	Price Breaks		Qty
HHSC-107-24.00-SD-SD 3D CAD 14 positions	1 in stock	Contact Us	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
HHSC-107-24.00-SE-SE 3D CAD 14 positions	Standard delivery 50 - 52 working days *	Contact Us	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
HHSC-107-24.00-SU-SD 3D CAD 14 positions	Standard delivery 50 - 52 working days *	Contact Us	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
HHSC-107-24.00-SU-SU 3D CAD 14 positions	Standard delivery 50 - 52 working days *	Contact Us	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

Qty.	Unit Price	Ext. Price

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Cable: 38 AWG coax micro ribbon

Signal Routing: 50 W Single-Ended

Overall Length: (152 mm) 6" to (1 m) 40" standard

Cable Flexing Life: >40,000 cycles

Cable Bending Radius: <2,5 mm

Plating: Au over 50 μ" (1.27 μm) Ni

Current Rating: 200 millamp per pin (14 adjacent pins powered)

Propagation Delay: 4.79 nsec/meter

Operating Temp Range: -25 °C to +105 °C

Note: Cable lengths longer than 40.00" (1 meter) are not supported with S.I. test data This Series is non-standard, non-returnable.

Samtec HHSC JTAG Test and debug coax cable system. Also available are other wire gauges, other connector pitches, other lengths, other pin counts and hot plugging, Contact Toby
